DAYTON

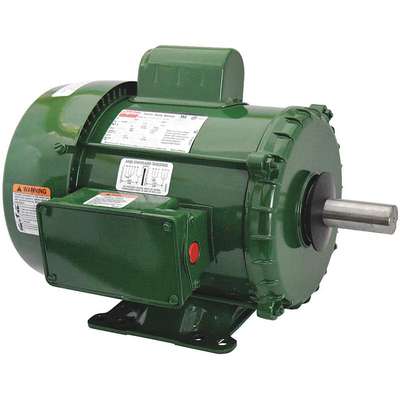

Dayton 2 HP High Torque Farm Duty Motor,Capacitor-Start,1740 Nameplate RPM,115/230 Voltage,Frame 182T
Hover over image to magnify
#921798-3 | Pkg Qty: 1
$1,134.77 pkg | $1,134.77 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Bearings
Ball
Motor Type
Capacitor-Start
Brand
DAYTON
Mounting
Base
Duty
Continuous
NEMA/IEC Frame
182T
Duty Cycle
Continuous
Nameplate RPM
1740
Enclosure
Totally Enclosed Fan-Cooled
Overall Length
15-1/8 in.
Finish
Green
Package Quantity
1
Frame
182T
Phase
Single
Full Load Amps
23.6/11.8
Rotation
CW/CCW
Hz
60
Service Factor
1
Insulation Class
F
Shaft Length
2-3/4 in.
Item
High Torque Farm Duty Motor
Shipping Weight
63.65 lb.
Length Less Shaft
12-3/8 in.
Thermal Protection
Manual
Mfr. Part Number
6K313
Type
High Torque
Motor Design
Capacitor-Start
Voltage
115/230 VAC
General
Capacitor Required
Included
Motor Service Factor
1
HP
2
Motor Shaft Design
Keyed
Includes
Shaft Key, Gasketed Conduit Box and Shaft Slinger
Motor Shaft Rotation
CW/CCW
Ins. Class
F
Motor Sub Application
High Torque
Max. Ambient Temp.
40 °C
Motor Thermal Protection
Manual
Motor Application
Farm Duty
No. of Speeds
1
Motor Bearings
Ball
Nominal Efficiency
74.8 %
Motor Enclosure Design
Totally Enclosed Fan-Cooled
RPM Range
1,701-1,800
Motor Frame Material
Rolled Steel
Shaft Dia.
1 1/8 in
Motor Mounting Position
Horizontal
Standards
CSA Certified (258525), UL Recognized (E47479)
Motor Mounting Type
Rigid Base
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Product Description
High torque farm-duty AC motors can power conveyors, silo unloaders, barn cleaners, compressors, and manure pumps under heavy load conditions. Motors have enclosures that help protect them from moisture, but they are not airtight or waterproof.
Expertly Selected Product Pairings
Documents
Item Barcode
Farm Duty Mtr,Cap Start,Tefc,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 6K313 | Farm Duty Mtr,Cap |
 | UNSPSC CODES | 26101103 | |
 | VMRS (ATA) CODES | 053-006-009 | Farm Duty Mtr,Cap |
