Adjustable Gantry Crane, 2,000 lb Load Capacity, 4.0" I Beam Flange Width
Hover over image to magnify
#921785-2 | Pkg Qty: 1
$3,984.45 pkg | $3,984.45 ea
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
APPROVED SUPPLIER
Material
Steel
Caster Material
Glass/Nylon
Maximum I Beam Height
168 in.
Caster Type
(4) Swivel
Mfr. Part Number
AHS-2-15-14
Color Family
Blue
Minimum I Beam Height
102 in.
Finish
Enamel
Package Quantity
1
Gantry Crane Span
15 ft.
Shipping Weight
791 lb.
Inside Width
12-5/12 ft.
Wheel Diameter
8 in.
Item
Adjustable Gantry Crane
Wheel Width
2 in.
Load Capacity
2000 lb.
General

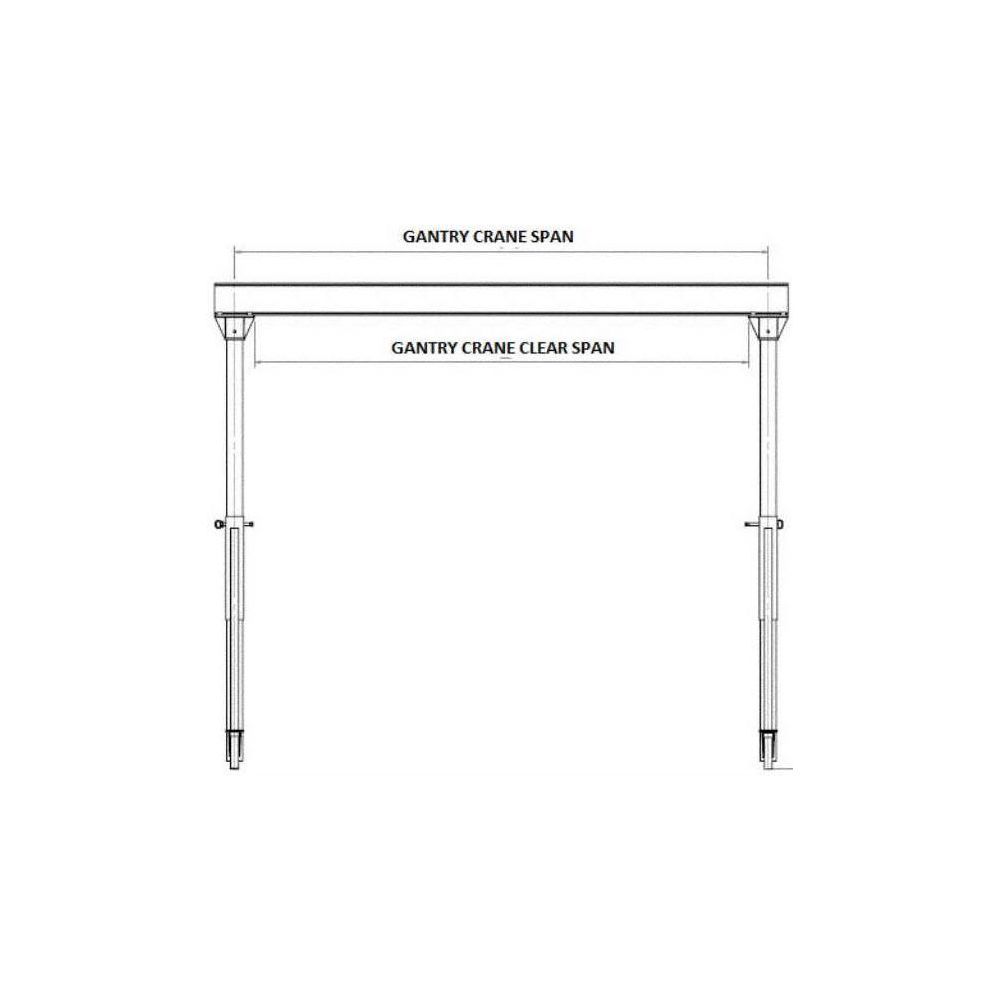

Gantry Crane Clear Span
12 ft 6 in
Includes
(4) Position Swivel Locking Casters
Gantry Crane Depth
7 ft 4-1/2 in
Max. I Beam Height
168 in
I Beam Flange Width
4.0 in
Min. I Beam Height
102 in
I Beam Height
6.0 in
Product Description
Adjustable Portable Steel and Aluminum Gantry Crane adjusts in 6" increments by using come-along, fork truck, or overhead crane (not included), sold separately. Crane ships unassembled and accepts most manual and electric hoists and trolleys (not included), sold separately.
- 2 uprights and 1 crossbar I-beam
- 4 swivel casters with lock in 90° intervals
Item Barcode
Adj. Gantry Crane,Blue,12.5 Ft.
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 48TC27 | Adj. Gantry Crane,Blue, |
 | UNSPSC CODES | 24101619 | |
 | VMRS (ATA) CODES | 053-006-009 | Adj. Gantry Crane,Blue, |
