MARATHON MOTORS

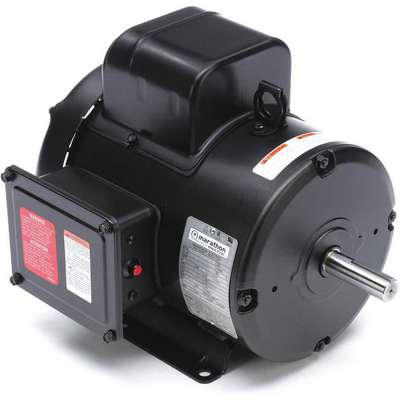

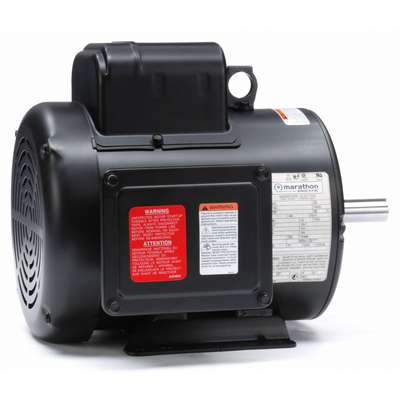

Marathon Motors General Purpose Farm Duty Motor, 2 HP, Capacitor-Start, Nameplate RPM 1,760, Voltage 115/230V AC
Hover over image to magnify
#921720-3 | Pkg Qty: 1
$1,441.50 pkg | $1,441.50 ea
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Bearings
Ball
Mounting
Rigid Base
Brand
MARATHON MOTORS
Mounting Position
Horizontal
Duty
Continuous
NEMA/IEC Frame
182TZ
Duty Cycle
Continuous
Nameplate RPM
1760
Enclosure
Totally Enclosed Fan-Cooled
Overall Length
14-7/16 in.
Finish
Enamel
Package Quantity
1
Frame
182TZ
Phase
Single
Full Load Amps
24/12
Rotation
CW/CCW
Hz
60
Service Factor
1.15
Insulation Class
F
Shaft Length
2-13/16 in.
Item
General Purpose Farm Duty Motor
Shaft Type
Keyed
Length Less Shaft
11-5/8 in.
Shipping Weight
68 lb.
Mfr. Part Number
182TCFW9061
Thermal Protection
Manual
Motor Design
Capacitor-Start
Voltage
115/230 VAC
Motor Type
Capacitor-Start/Induction-Run
General
Capacitor Required
Yes
Motor Service Factor
1.15
Efficiency Group
Standard
Motor Shaft Design
Keyed
HP
2
Motor Shaft Rotation
CW/CCW
Includes
Condensate Drain, Shaft Slinger
Motor Thermal Protection
Manual
Ins. Class
F
No. of Speeds
1
Max. Ambient Temp.
40 °C
Nominal Efficiency
74 %
Motor Application
Farm Duty
RPM Range
1,701-1,800
Motor Bearings
Ball
Shaft Dia.
7/8 in
Motor Efficiency Group
Standard Efficient
Standards
CSA Certified, UL Recognized
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Usable @ 200V
Yes
Motor Frame Material
Steel
Usable @ 208V
Yes
Motor Mounting Position
Horizontal
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Mounting Type
Rigid Base
Product Description
Extra-high-torque farm-duty AC motors have up to 400% starting torque for extremely hard-starting applications and can start under full-load conditions in powering conveyors, silo unloaders, barn cleaners, compressors, and manure pumps. Motors have enclosures that help protect them from moisture, but they are not airtight or waterproof.
