Ball Valve: 3/8 in Pipe Size, Full, 600 psi CWP Max. Pressure, -20° to 300°F

Hover over image to magnify

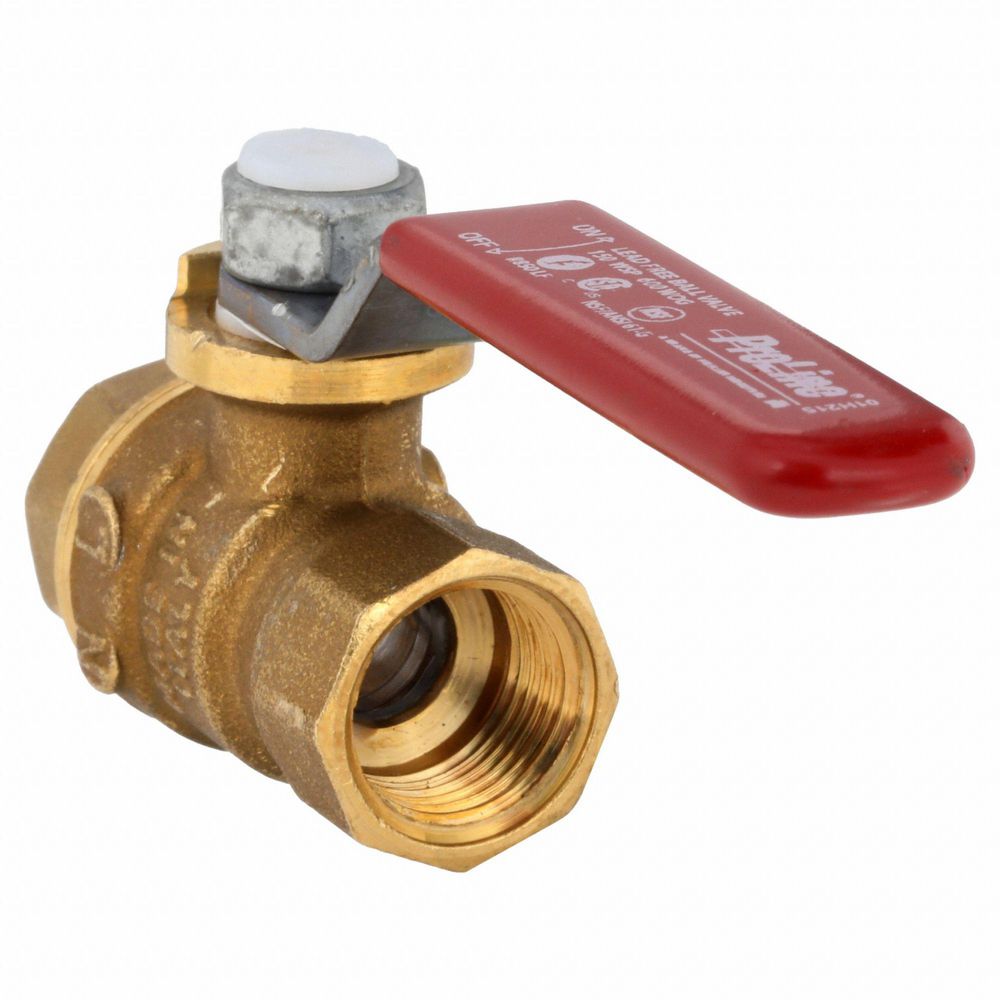

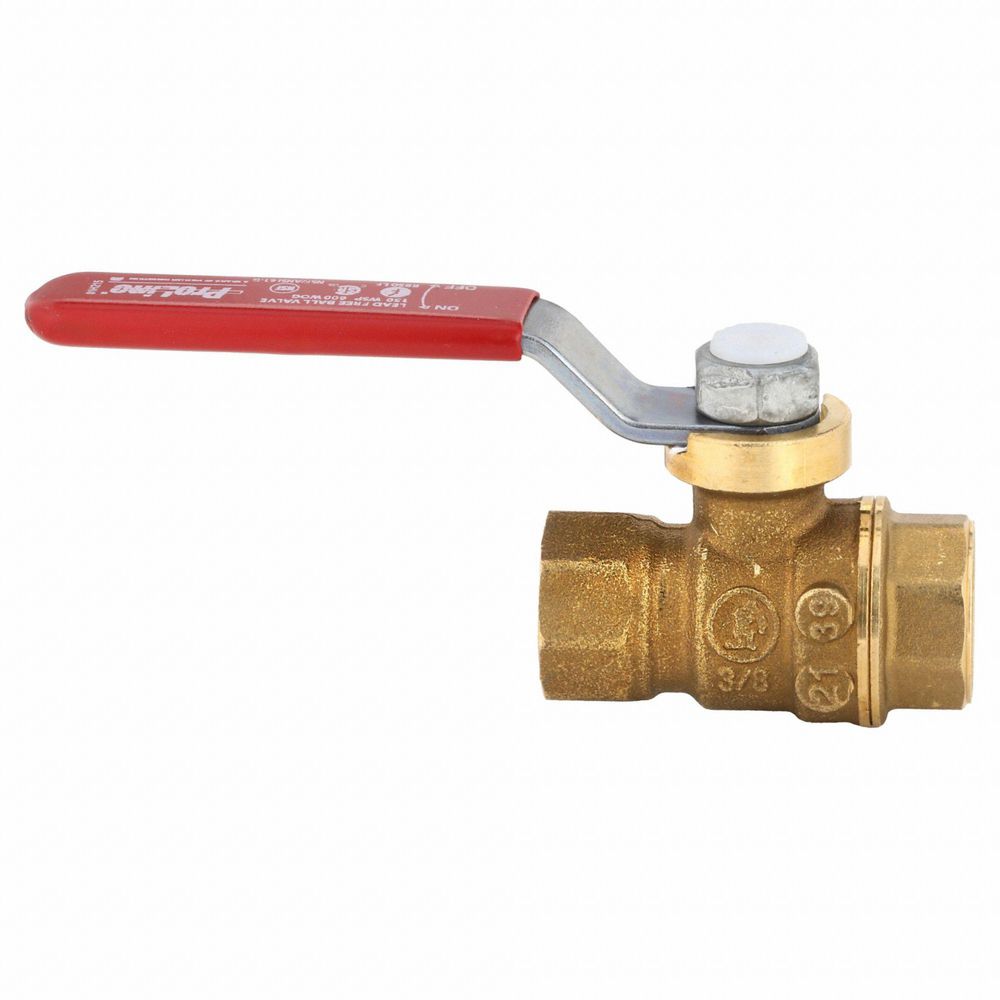

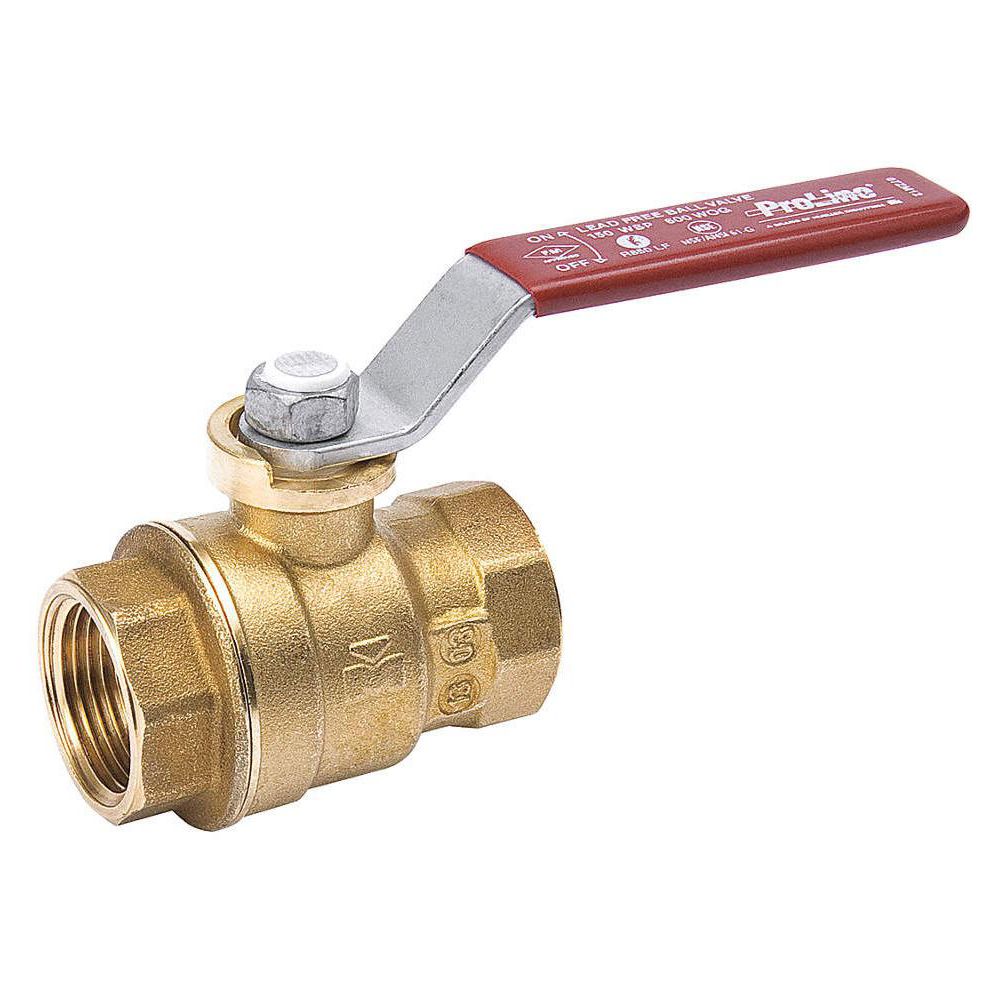

Ball Valve,Brass,Full Port,3/8
PI_Asset_3736658
PI_Asset_3736659
Ball Valve,Brass,Full Port,3/8
PI_Asset_3736658
PI_Asset_3736659
Double tap image to magnify
Ball Valve,Brass,Full Port,3/8
30UN19-A0020-3_v2
30UN19-A3020-2_v2
Ball Valve,Brass,Full Port,3/8
30UN19-A0020-3_v2
30UN19-A3020-2_v2

#921697-9Pkg Qty: 1

$13.70 pkg | $13.70 ea

In Stock

Shipping to 43085
Expected to arrive Tue. Apr 01.
|

Technical Specifications

Key Specifications
Ball Valve Group
Manual
Maximum Pressure
600 psi CWP
Ball Valve Item
Ball Valve
Mfr. Part Number
107-402NL
Body Material
Brass
Package Quantity
1
Body Style
Inline
Port
Full
Brand
APPROVED SUPPLIER
Seat Material
PTFE
Connection Type
FNPT x FNPT
Shipping Weight
.26 lb.
For Pipe Size
3/8 in.
Stem Material
Forged Brass
General Connection Type
Female NPT
Stem Type
Blowout Proof
Handle Material
Dacromet Coated Steel
Temperature Range (Deg. F)
-20 to 300 deg. F
Handle Type
Lever
Valve Style
2-Piece
Item
Ball Valve
General
Ball Valve Product Group
Manual
Standards
CSA, NSF, UL, FM
Body Seal Material
PTFE
Valve Basic Body Material
Brass
Features
Full Port for Maximum Flow Rate
Valve Structure
2-Piece
Max. Steam Pressure
150 PSI WSP

Product Description

Made from an alloy of copper and zinc, this brass valve offers malleability and corrosion resistance, with added durability. Brass is stronger and harder than copper, yet more malleable than steel and iron, allowing the valve to resist cracking. It can withstand extremely high temperatures, and will not rust.

Item Barcode

9216979
Ball Valve,Brass,Full Port,3/8
