LIBERTY

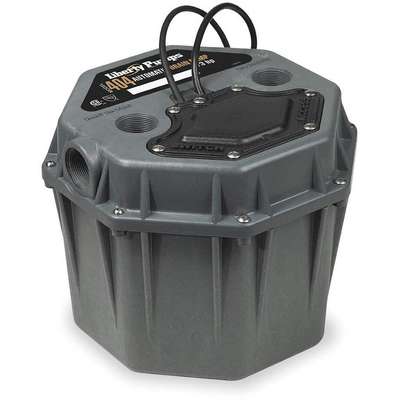

1/3 HP Sink Drain Pump System, 5 Amps, 115 Voltage, Basin Capacity: 4.3 gal.
Hover over image to magnify
#921493-5 | Pkg Qty: 1
$454.27 pkg | $454.27 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amps
5 A
Item
Sink Drain Pump System
Basin Capacity
4.3 gal.
Maximum Head
21 ft.
Brand
LIBERTY
Maximum Liquid Temperature
140°F
Cord Length
10 ft.
Mfr. Part Number
404
GPM of Water @ 10 Ft. of Head
25
Outlet
1-1/2 in.
GPM of Water @ 15 Ft. of Head
15
Package Quantity
1
GPM of Water @ 20 Ft. of Head
4
Pump Material
Aluminum
GPM of Water @ 5 Ft. of Head
30
Pump Type
Above Grade
Horsepower
1/3
Shaft Seal
Mechanical
Housing Material
Aluminum
Shipping Weight
20.02 lb.
Impeller
Polypropylene
Switch Type
Wide Angle Float
Impeller Material
Polypropylene
Type
Above Grade
Inlet
1-1/2 in.
Voltage
115
General
Basin Dia.
13 3/4 in
HP
1/3 hp
Basin Diameter
13-3/4 in.
Includes
Piggyback Style Plug
Basin Height
11-1/8 in.
Max. Liquid Temp.
140 Degrees F
Basin Inlet Diameter
1 1/2 in
Nominal Voltage
110V AC
Basin Material
Polyolefin
Outlet Diameter
1 1/2 in
Flow Rate @ 10 Ft. of Head
25.0 gpm
Rated Voltage
115V AC
Flow Rate @ 15 Ft. of Head
15.0 gpm
Switch Actuation
Vertical Float
Flow Rate @ 20 Ft. of Head
4.0 gpm
Switch Electrical Connection
Piggyback
Flow Rate @ 5 Ft. of Head
38.0 gpm
Vent Size
1 1/2 in
Product Description
These sink drain pump systems allow for wastewater draining of sinks, tubs, and washing machines where a gravity system won't work, such as in a basement that is below the main sewer line. Pumps are connected near the area to be drained and allow automatic basin draining when the basin is full. Systems include a basin, pipe, pump, and sometimes a check valve.
Expertly Selected Product Pairings
Documents
Item Barcode
Sink Pump System,4.3 Gal,1/3
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 1GEK4 | Sink Pump System,4.3 |
 | UNSPSC CODES | 40151510 | |
 | VMRS (ATA) CODES | 053-006-009 | Sink Pump System,4.3 |
