IFM

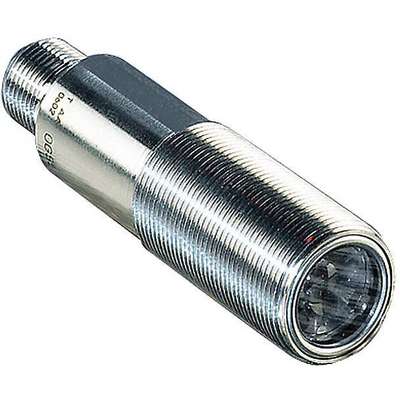

IFM 72mm Diffuse Cylindrical Photoelectric Sensor; Max. Sensing Distance: 300mm
Hover over image to magnify
#921324-5 | Pkg Qty: 1
$143.24 pkg | $143.24 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body Material
316L Stainless Steel
Minimum Object Size
25mm Dia. Light Spot
Brand
IFM
NEMA Rating
Not Rated
Cable Connection
M12
Operating Frequency
1000 Hz
Circuit Type
PNP
Operating Modes
Selectable Light On/Dark On
Contact Form
PNP
Operating Temperature Range
-2 deg. C to 8 deg. C
Diameter
18 mm
Output Mode
Selectable
Electrical Connection
4-Pin M12 Male Connector
Package Quantity
1
IP Rating
67
Power Requirement
10 to 36VDC
Item
Cylindrical Photoelectric Sensor
Sensing Method
Diffuse
Length
72 mm
Shape
Cylindrical
Light Source
Red LED
Shipping Weight
.15 lb.
Maximum Amps
200m
Style
Cylindrical Photoelectric Sensor
Maximum Load Current
200mA
Temperature Range (Deg. F)
-13 to 176 deg. F
Maximum Sensing Distance
300mm
Type
Diffuse
Mfr. Part Number
OGH500
Voltage Range
10-36 VDC
General
Circuit Type - Cylindrical Photoelectric Sensor
PNP
Operating Mode - Photoelectric Sensor
Selectable Light On/Dark On
Diameter - Cylindrical Photoelectric Sensor
18 mm
Operating Temp. Range
-25° to 80°C
Electrical Connection - Cylindrical Photoelectric Sensor
4-Pin M12 Male Connector
Operation Mode
Selectable Light On/Dark On
Features
Reverse Polarity and Overload Protection, PEI Lens
Power Requirement - Cylindrical Photoelectric Sensor
10 to 36V DC
Length - Cylindrical Photoelectric Sensor
72 mm
Sensing Method - Cylindrical Photoelectric Sensor
Diffuse
Max. Sensing Distance - Cylindrical Photoelectric Sensor
300 mm
Standards
CCE Approval
Maximum Sensing Distance - Photoelectric Sensor
300mm
Style - Cylindrical Photoelectric Sensor
Cylindrical Photoelectric Sensor
Product Description
This photoelectric sensor offers long sensing ranges and easy setup. It is designed and tested to withstand industrial automation applications such as conveying, material handling, packaging, and automotive assembly. It also features a compact housing and integrated microprocessor-based electronics for high performance.
Expertly Selected Product Pairings
Item Barcode
Photoelectric Sensor,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 35T399 | Photoelectri c Sensor, |
 | UNSPSC CODES | 39121528 | |
 | VMRS (ATA) CODES | 053-006-000 | Photoelectri c Sensor, |
