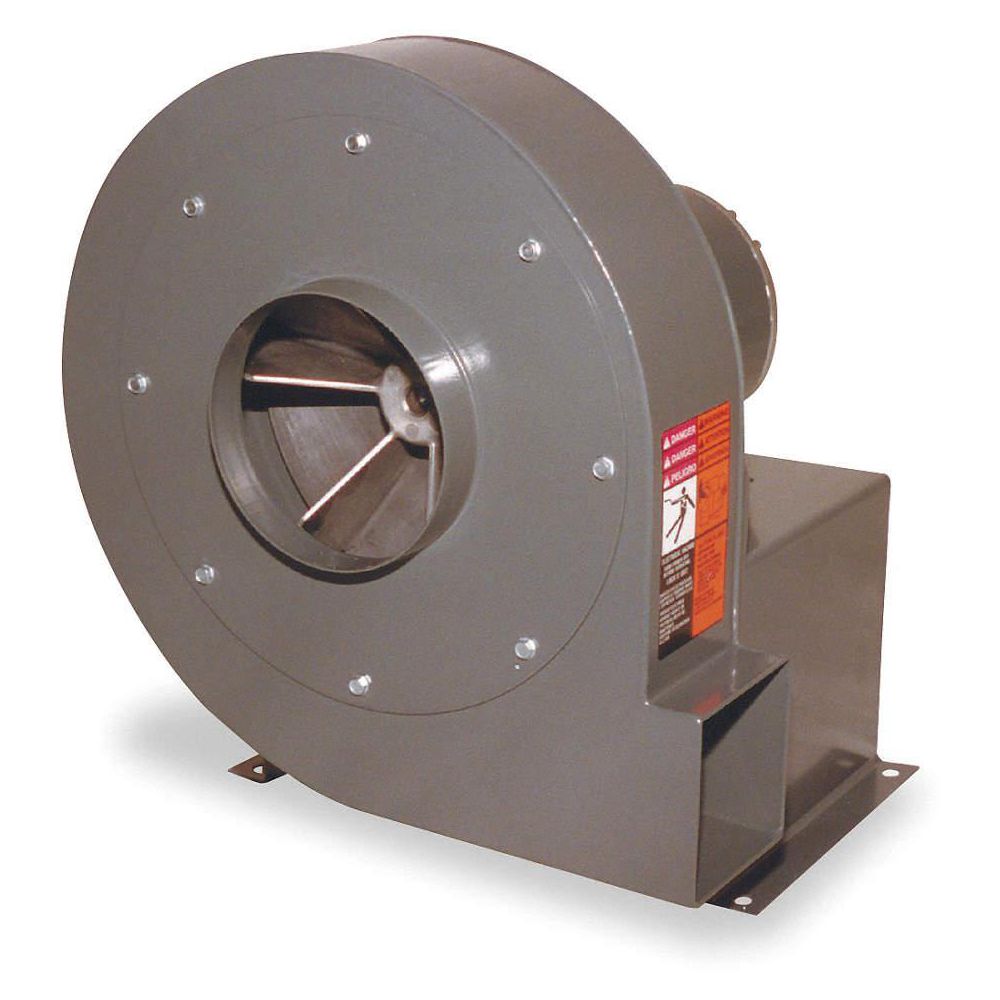

Dayton 5 HP High Pressure Blower With Motor, 13-1/2" Wheel Dia., 23-1/8"H, 208-230/460 Voltage

Hover over image to magnify
Blower,13 1/2in
PI_Asset_950865
Blower,13 1/2in
PI_Asset_950865

#921298-6 | Pkg Qty: 1

$1,348.18 pkg | $1,348.18 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Agency Compliance
AMCA AIR
Package Quantity
1
Assembled/Unassembled
Unassembled
Rotation
CW
Brand
DAYTON
Shipping Weight
127.9 lb.
Depth
18-7/8 in.
Wheel Diameter
13-1/2 in.
Height
23-1/8 in.
Wheel Width
4-3/8 in.
Item
High Pressure Blower
Width
22-3/8 in.
Mfr. Part Number
7C562
General
Blower RPM
3,430 RPM
Dimension K (In.)
11 3/8 in
CFM @ 3.000-In. SP
1832
Dimension L (In.)
11 in
CFM @ 4.000-In. SP
1741
Dimension O (In.)
18 7/8 in
CFM @ 5.000-In. SP
1647
Dimension P (In.)
8 in
CFM @ 6.000-In. SP
1547
Dimension R (In.)
11 1/2 in
CFM @ 7.000-In. SP
1438
Dimension S (In.)
8 1/8 in
CFM @ 8.000-In. SP
1319
Dimension V (In.)
7 1/4 in
Dimension A (In.)
17 5/8 in
Discharge Height (In.)
7 1/8 in
Dimension B (In.)
11 1/4 in
Discharge Width (In.)
5 3/4 in
Dimension C (In.)
7 1/8 in
Inlet Dia. (In.)
8 in
Dimension D (In.)
5 3/4 in
Max. Ambient Temp. (F)
104 Degrees F
Dimension E (In.)
8 in
Max. Inlet Temp. (Deg. F)
180 Degrees F
Dimension F (In.)
9 9/16 in
Wheel Bore (In.)
1 1/8 in
Dimension G (In.)
1 in
Wheel Dia. (In.)
13 1/2 in
Dimension H (In.)
10 1/2 in
Wheel Width (In.)
4 3/8 in
Dimension J (In.)
9 5/8 in
dBA @ 5 Feet
92 dBA

Product Description

Radial blade, high-pressure direct-drive blower features a housing can be rotated to 8 discharge positions in each rotation. Powerful blower supplies high-pressure air for efficient cooling and conveying. Paddle-type, self-cleaning, die-cast wheels rotate clockwise and are precision balanced for top performance. Bottom horizontal discharge. Great for small-ducted dust exhaust systems and wherever dust collection bags are necessary.
