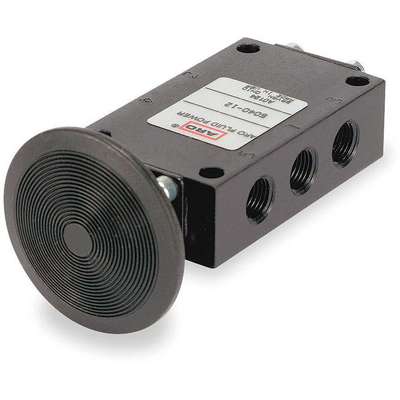

Manual Air Control Valve: 1/8 in Valve Port Size, NPT, Button / Spring, 16 cfm Max. CFM - Valves
Hover over image to magnify
#921292-4 | Pkg Qty: 1
$185.70 pkg | $185.70 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Actuator/Return
Button/Spring
Overall Width
1-1/2 in.
Air Consumption
scfm
Package Quantity
1
Brand
ARO
Pipe Size
1/8 in.
CFM
16
Port Size
1/8 NPT
Coefficient of Volume
0.4
Series
50
Connection
NPT
Shipping Weight
.4 lb.
Cv
0.4
Type
Compact
Item
Manual Air Control Valve
Valve Actuator/Return
Button / Spring
Maximum CFM
16
Valve Maximum Pressure Rating
150 psi
Maximum Pressure
150 psi
Valve Port Size
1/8 in.
Mfr. Part Number
5040-02
Valve Temperature Range
-10° to 180°F
Number of Positions
2
Valve Type
4-Way, 2-Position
Overall Height
1-3/4 in.
Valve Ways/Positions
4-Way/2-Position
Overall Length
3-27/32 in.
Width
1-1/2 in.
General
Actuator / Return
Button/Spring
Pneumatic Valves Product Group
Manual Air Control Valve
Air Valve Type
4-Way, 2-Position
Valve Actuator / Return
Button / Spring
Max. CFM - Valves
16 cfm
Valve Ways and Positions
4-Way/2-Position
Number of Ways
4
Product Description
3- and 4-Way Heavy-Duty Manual and Mechanical Power Valves
Item Barcode
Manual Air Control Valve,4-Way,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2F945 | Manual Air Control |
 | UNSPSC CODES | 40141603 | |
 | VMRS (ATA) CODES | 053-006-009 | Manual Air Control |
