LIBERTY

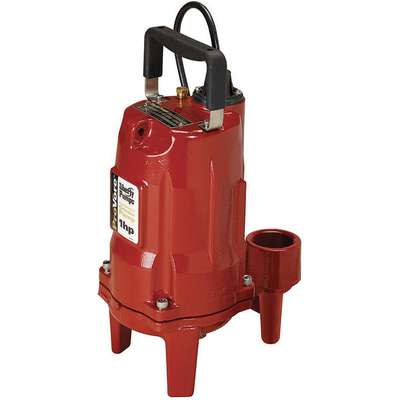

1 HP Grinder Pump, CSCR Motor, 50 ft. Max Head, Silicone Carbide Shaft Seal
Hover over image to magnify
#921269-9 | Pkg Qty: 1
$1,328.31 pkg | $1,328.31 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
CSA, UL 778
Item
Grinder Pump
Amps
12 A
Maximum Head
50 ft.
Base Material
Cast Iron
Maximum Liquid Temperature
140°F
Bearing Type
Ball
Maximum Temperature (Deg. F)
140°
Brand
LIBERTY
Mfr. Part Number
PRG101M
Cord Length
10 ft.
Mfr. Warranty Length
3 Yr.
Diameter
11
Minimum Sump Pit Diameter
24 in.
Discharge NPT
2 in. F
Motor RPM
3450
Duty
Intermittent
Motor Type
CSCR
GPM of Water @ 10 Ft. of Head
42
Package Quantity
1
GPM of Water @ 15 Ft. of Head
39
Phase
1
GPM of Water @ 20 Ft. of Head
36
Pump HP
1
GPM of Water @ 25 Ft. of Head
32
Pump Type
Manual
GPM of Water @ 30 Ft. of Head
27
RPM
3450
GPM of Water @ 35 Ft. of Head
22
Shaft Material
Stainless Steel
GPM of Water @ 40 Ft. of Head
15
Shaft Seal
SIC
GPM of Water @ 45 Ft. of Head
10
Shaft Seal Material
Silicone Carbide
GPM of Water @ 5 Ft. of Head
44
Shipping Weight
57 lb.
Handle
Yes
Switch Type
No Switch Included
Height
17-3/4 in.
Thermal Protection
Yes
Horsepower
1
Type
Manual
Hz
60Hz
Voltage
120 VAC
Impeller Material
Stainless Steel
Warranty
3 Years
Input Phase AC
1
General
Discharge Dia.
2 in
Max. Diameter Solids
2 in
Discharge Gender
Female
Min. Sump Pit Dia.
24 in
Discharge Standard
NPT
Phase - Pumps
1
Flow Rate @ 10 Ft. of Head
42 gpm
Rated Voltage
115V AC
Flow Rate @ 15 Ft. of Head
39 gpm
Shaft Seal Material - Pumps
Silicone Carbide
Flow Rate @ 20 Ft. of Head
36 gpm
Standards
CSA, UL 778
Flow Rate @ 40 Ft. of Head
15 gpm
Switch Actuation
No Switch Included
HP
1 hp
Switch Electrical Connection
No Switch Included
Product Description
These general purpose 110 to 120V sewage grinder pumps shred large particles into small fragments so the waste can be pumped into a sewage system. They are compatible with most standard U.S. residential electrical wall outlets and have a Type A (two prongs, ungrounded) or Type B (three prongs, grounded) power cord plug.
