MILLER ELECTRIC

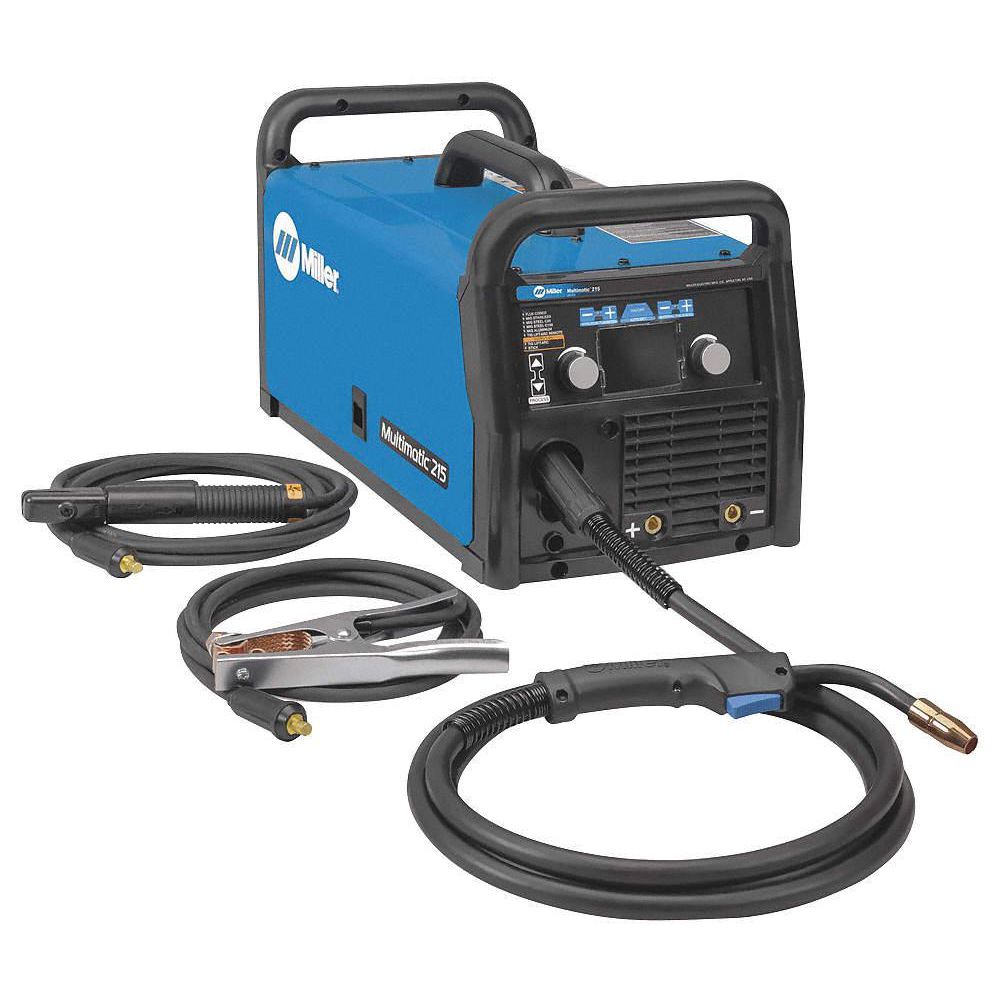

Miller Electric Multiprocess Welder, Multimatic 215 Series, Input Voltage: 120/240VAC
Hover over image to magnify
#921246-2 | Pkg Qty: 1
$2,754.91 pkg | $2,754.91 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
MILLER ELECTRIC
Package Quantity
1
Duty Cycle
20% Stick & TIG, 240V - 40% MIG
Phase
Single-Phase
Hz
50/60
Plug Type
5-15P, 6-50P
Input Amps
240V - 16.7 MIG, 18 TIG, 27 Stick
Portability
Handheld Portable
Input Frequency
50/60 Hz
Power Cord Length
6-1/2 ft.
Input Voltage
110/115/120 VAC, 220/230/240 VAC
Rated Output
240V - 150 A @ 21.5VDC MIG, 190 A@ 17.6VDC TIG, 190 A @ 27.6VDC Stick
Item
Multiprocess Welder
Rated Output @ Duty Cycle (MIG)
110 A @ 19.5V, 60%
150 A @ 21.5V, 40%
200 A @ 24V, 20%
Maximum Amperage (MIG)
230 A
Rated Output @ Duty Cycle (Stick)
190 A @ 20%, 90 A @ 40%
Maximum Amperage (Stick)
200 A
Rated Output @ Duty Cycle (TIG)
140 A @ 15.6V, 40%
190 A @ 17.6V, 20%
Maximum Amperage (TIG)
210 A
Series
Multimatic 215
Mfr. Part Number
907693
Shipping Weight
55.35 lb.
Model
907693
Welded Material
Mild Steel, Stainless Steel, Aluminum (with Optional Spool Gun)
Output Range
20 to 230 ADC
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Overall Depth
20-1/2 in.
Wire Size
0.030 in. to 0.035 in.
Overall Height
12-1/2 in.
max._wire_dia_spec_s
0.035 in.
Overall Width
11-1/4 in.
General
Aluminum - Material Thickness
18 ga to 3/8 in
Mild Steel - Material Thickness
24 ga to 3/8 in
Application
DIY/Home Hobbyist, Farm, Metal Art/Sculptures, Racing/Customizing/Restoring, Ranch
Minimum Wire Diameter
.030
Features
Color LCD, Multi-Voltage Plug
Minimum Wire Feed Speed
60 in/min
For Wire Type
Flux-Cored, Solid
Open Circuit Voltage
58 V DC
Includes
(2) Contact Tips for 0.03 in Wire, 10 ft MDX-100 MIG Gun, 10 ft Work Cable & Clamp with 25 mm Dinse-Style Connector, Electrode Holder with 13 ft Cable & 25 mm Dinse-Style Connector, Flow Gauge Regulator & Gas Hose for Argon or Argon/Carbon Dioxide Mix, Hobart spool of 0.03 in Solid MIG Wire, Quick Select Drive Roll for 0.024 in or 0.03/0.035 in Solid Wire & 0.03/0.035 in Flux-Cored Wire
Power Cord Included
Yes
Input Voltage (Nominal)
240V, 120V
Rated Output at Duty Cycle (Stick)
90 A @ 40%, 190 A @ 20%
Kit Includes
Work Cable with Clamp, MIG Gun, Flow Gauge/Regulator & Gas Hose, Stick Electrode Holder with Cable, Drive Rolls, Contact Tips, Solid Wire
Remote Connection Type
RJ45
MIG Welding Maximum Output Current
230 A
Stick Welding Maximum Output Current
200 A
MIG Welding Minimum Output Current
30 A
Stick Welding Minimum Output Current
30 A
MIG Welding Output @ Duty Cycle
110 A @ 19.5 V, 60%, 150 A @ 21.5 V, 40%, 200 A @ 24 V, 20%
Stick Welding Output @ Duty Cycle
190 A @ 27.6 V, 20%, 90 A @ 23.6 V, 40%
Max. Amperage Range (MIG)
150 A — 300 A
TIG Welding Maximum Output Current
210 A
Max. Amperage Range (Stick)
150 A — 300 A
TIG Welding Minimum Output Current
20 A
Max. Amperage Range (TIG)
150 A — 300 A
TIG Welding Output @ Duty Cycle
140 A @ 15.6 V, 40%, 190 A @ 17.6 V, 20%
Max. Input Current
27 A @ 240V AC (Single-Phase)
Welder Kit Type
MIG/Stick Package
Max. Wire Diameter
0.035 in (Flux-Cored), 0.035 in (Solid)
Welding Mode
CC/CV
Maximum Wire Feed Speed
600 in/min
Product Description
Multiprocess Welder, Multimatic(TM) 215, 1 Phase, Input Voltage 120/240VAC, Output Range 20 to 230A DC, Rated Output 240 V - 150 A @ 21.5 VDC MIG, 190 A@ 17.6 VDC TIG, 190 A @ 27.6 VDC Stick, Duty Cycle 240 V - 40 Percent MIG, 20 Percent Stick & TIG, 50/60 Hz, Multiprocess Capabilities, Color LCD, Multi-Voltage Plug, Two Gas Connections, Light Fabrication, Maintenance and Repair, Autobody/Farm/Home
Expertly Selected Product Pairings
Documents
Item Barcode
Mig Welder, 215SERIES,120/240V
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 49KA66 | MIG WELDER, 215 SERIES |
 | UNSPSC CODES | 23271409 | |
 | VMRS (ATA) CODES | 053-006-009 | MIG WELDER, 215 SERIES |
