WESTWARD

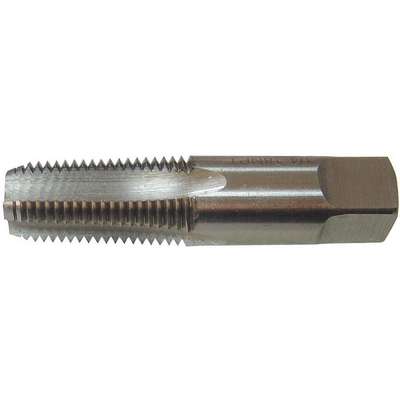

1/2"-14, Tap, Right Hand, Taper, 4 Flutes, High Speed Steel, Uncoated Tap Finish
Hover over image to magnify
#921198-7 | Pkg Qty: 1
$47.77 pkg | $47.77 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
WESTWARD
Shank Length
1-3/4 in. in.
Cutting Direction
Right
Shipping Weight
.25 lb.
Cutting Direction
Right Hand
Size
1/2 in.
Drill Bit Size
45/64 in.
Square Size
0.515 in.
Finish
Uncoated
Subgroup | Tap
Pipe
Flute Type
Straight
Tap Chamfer
Semi-Bottoming
Flutes
4
Tap Dimension Type
Pipe
Item
Pipe and Conduit Thread Tap
Tap Finish
Bright (Uncoated)
Material
High Speed Steel
Tap Material
High Speed Steel
Mfr. Part Number
5TWU0
Tap Size
1/2 in.
Number of Flutes
4
Tap Style
Pipe
Number of Pieces
1
Tap Thread Size
1/2 in.-14
Overall Length
3-1/8 in.
Tap Thread Type
NPT
Pack Quantity
1
Thread Direction
Right Hand
Pitch
14
Thread Length
1-3/8 in.
Primary Material Application
All Materials
Thread Type
NPT
Series
311-60255
Tolerance
3B
Shank Diameter
11/16 in.
Type
Taper
General
75% Thread Drill Size
0.7031 in
Shank Dia.
11/16 in
Application
Use with Free Running and Screw Locking Helicoil Threaded Inserts
Shank Type - Machining
Straight
Class of Fit
3B
Standards
ANSI
Coolant Fed
Non-Coolant Through
Tap Grouping
Individual
Features
Free-Running; Screw-Locking Heli-Coil
Thread Limit / Class of Fit
3B
Material Grade - Machining
M2
Thread Standard
NPT
Measurement System
Fractional Inch
Threads per Inch
14
Product Description
High-speed steel taps provide good wear resistance in general purpose tapping applications in a range of materials.
Expertly Selected Product Pairings
Item Barcode
Pipe Tap,Taper,1/2-14,Uncoated,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 5TWU0 | Pipe Tap, Taper,1/2-14, |
 | UNSPSC CODES | 23241615 | |
 | VMRS (ATA) CODES | 053-006-009 | Pipe Tap, Taper,1/2-14, |
