HUBBELL WIRING DEVICE-KELLEMS

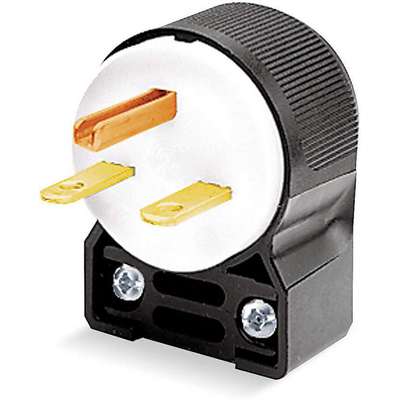

Hubbell Wiring Device-Kellems 15A Industrial Grade Angle Straight Blade Plug, Black/White; NEMA Configuration: 6-15P
Hover over image to magnify
#921102 | Pkg Qty: 1
$39.49 pkg | $39.49 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amps
15 A
Maximum Wire Size
10 AWG
Antimicrobial
No
Mfr. Part Number
HBL5666CA
Body Length
2.11 in.
Minimum Operating Temperature
-40 °C
Brand
HUBBELL WIRING DEVICE-KELLEMS
Minimum Wire Size
18 AWG
Color Family
Black / White
NEMA Configuration - Plugs & Connectors
6-15
Connection Orientation
Angled
Number of Blades
3
Cord Size
0.325 in. to 0.655 in.
Number of Poles
2
Corrosion Resistant
Yes
Number of Wires
3
Current Rating
15 A
Package Quantity
1
Description
Insulgrip, Grounding
Phase
Single
Grade
Industrial
Polarized
Yes
Grounding
Grounded
Shipping Weight
.15 lb.
Horsepower
1-1/2 hp
Standards
CSA Certified C22.2 No. 42 File 280, NEMA WD-6, UL 498 File E1706
Housing Material
Nylon
Sub-Category
Plugs
IP Rating
IP20
Type
Insulgrip
Insulation Material
Nylon
UL 94 Flammability Rating
HB
Item
Angle Straight Blade Plug
Voltage
250V AC
Material
Nylon
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
75 °C
Wiring Style
Standard
General
Amps - Plugs and Receptacles
15 A
Phase - Plugs and Receptacles
1
Grade - Plugs and Receptacles
Industrial
Sub-Category
Plugs
HP
1.5
Voltage - Plugs and Receptacles
250V AC
NEMA Plug Configuration - Plugs and Receptacles
6-15P
Product Description
NEMA Straight-Blade Plugs and Connectors
- CSA Certified.
- Insulgrip® Angle Plugs
- Right-angle device enables cord-connected equipment to be placed close to walls. Blade holder adjusts to position cord 8 ways.
Expertly Selected Product Pairings
Item Barcode
Angle Plug,6-15P,15A,250V
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 5Z879 | Angle Plug,6- 15P,15A,250V |
 | UNSPSC CODES | 39121402 | |
 | VMRS (ATA) CODES | 053-006-009 | Angle Plug,6- 15P,15A,250V |
