HONEYWELL

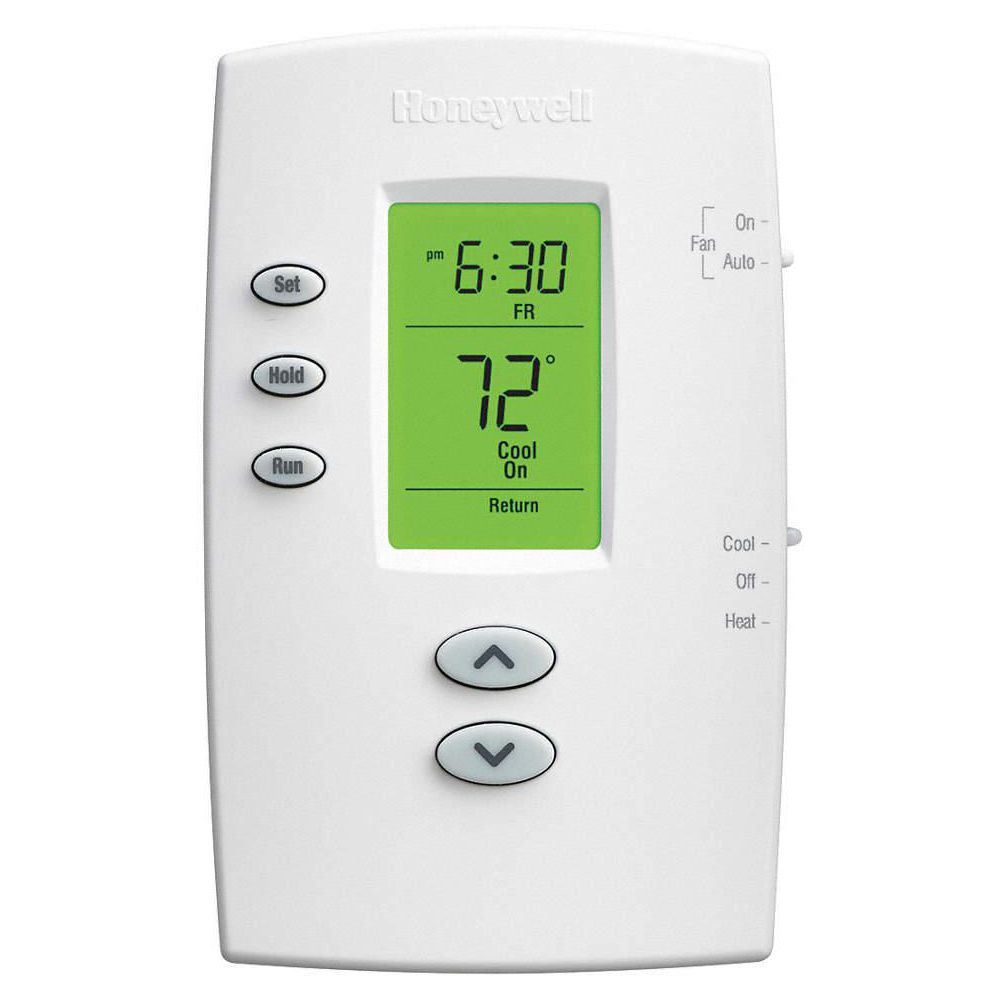

Honeywell Low Voltage Thermostat: Heat and Cool, Manual, B / C / G / O / R / RC / W / Terminal Designations
Hover over image to magnify
#921061 | Pkg Qty: 1
$84.36 pkg | $84.36 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
HONEYWELL
Mounting Position
Vertical
Color Family
White
Package Quantity
1
Depth
1-1/8 in.
Power Source
Hardwired/Battery
Display Type
Digital Backlit
Shipping Weight
.53 lb.
Height
4-11/16 in.
Voltage
20 to 30 VAC
Item
Low Voltage Thermostat
Width
2-7/8 in.
Mfr. Part Number
TH2110DV1008/U
General
Application/Stages
Heat and Cool; 1H/1C Conventional, 1H/1C Heat Pump
Number of Cooling Stages - Conventional System
1
Backlit Screen
Yes
Number of Cooling Stages - Heat Pump System
1
Changeover Type
Manual
Number of Heating Stages - Conventional System
1
Compatible System Type
Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump without Aux, Hydronic Systems, Millivolt
Number of Heating Stages - Heat Pump System
1
Electrical Connection Type
Hardwired
Number of Zones
1
Fan Settings
Auto-On
Operating Humidity Range
5% to 90% RH
Features
Side Switches
Screen Height
1 3/4 in
For Use With
Conventional or Heat Pumps
Screen Width
1 3/4 in
Includes
2 AA Batteries
Sensor Location
Built-In
Includes Batteries
Yes
System Settings
Cool-Heat-Off
Includes Positive Off
Yes
System/Fan Settings
Cool-Heat-Off/Auto-On
Key Features
Easy-to-Read Display
Temperature Control Range
40 Degrees to 99 Degrees F
Low Battery Indicator
Yes
Temperature Differential
1 Degrees F
Maximum Control Temperature
99 Degrees F
Temperature Readout
Yes
Maximum Operating Humidity
0.9
Temperature Scale
Fahrenheit/Celsius
Millivolt Compatible
Yes
Temperature settings per day
4
Minimum Control Temperature
40 Degrees F
Temporary Program Override
Yes
Minimum Operating Humidity
0.05
Terminal Designations
B, C, G, O, R, RC, W, Y
Mounting Direction/Shape
Vertical
Thermostat Type
Low Voltage
Product Description
Standard thermostats are most commonly used to control the temperature of conventional forced air systems or heat pumps in residential and light commercial settings, such as offices, restaurants, or retail stores. They're programmable and allow users to select temperature settings for different times of the day or different days of the week.
Item Barcode
Low V T-Stat,Stages Heat 1,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2HFF6 | Low V T-Stat, Stages Heat |
 | UNSPSC CODES | 41112209 | |
 | VMRS (ATA) CODES | 053-006-009 | Low V T-Stat, Stages Heat |
