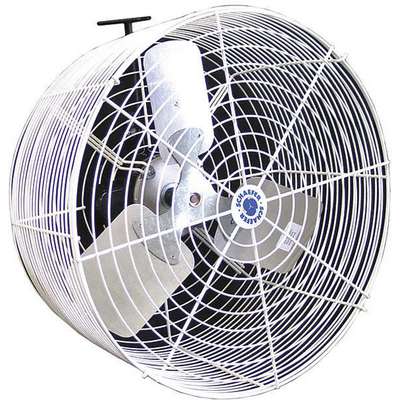

Schaefer 20" Standard-Duty Industrial Fan, Stationary, Wall, 115/230 VAC

Hover over image to magnify
Air Circulator,20 In,5473 Cfm,
Air Circulator,20 In,5473 Cfm,

#920995-4 | Pkg Qty: 1

$416.11 pkg | $416.11 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Air Circulator Height
23 in.
Motor Insulation
Class B
Air Flow
5,470 cfm
Motor RPM
1725
Assembled/Unassembled
Yes
Motor Type
Permanent Split Capacitor
Bearing Type
Ball
Mounting Location
Wall
Blade Diameter
20 in.
NEMA Plug Configuration
5-15P
Blade Material
Aluminum
Number of Blades
3
Brand
SCHAEFER
Number of Conductors
3
Cord Length
5 ft.
Oscillating
No
Drive Type
Direct
Outside Diameter
23 in.
Duty
Standard Duty
Package Quantity
1
Guard Material
Galvanized Steel
Phase
1
Hz
60 Hz
Shaft Diameter
1/2 in.
Item
Industrial Fan
Shipping Weight
37.1 lb.
Mfr. Part Number
GVK20
Thermal Protection
Automatic
Mobile/Stationary
Stationary
Voltage
115/230V AC
Motor Enclosure
Totally Enclosed Air Over
Watts
315
Motor HP
1/3
Width
23 in.
General
Application
Spot Cooling and People Cooling
Includes
Wall Mount Bracket
Environmental Applications
Industrial
Max. Ambient Temp.
104 Degrees F
Fan Cord Length
5 ft
Wheeled Base
Stationary
Fan Housing Material
Steel
Wire Guard Finish
White Powder Coated
Fan Mounting Location
Wall

Product Description

Standard-duty industrial wall-mount fans cool heavy manufacturing areas and other dusty or dirty environments where floor space is limited. Compared to light-duty industrial fans, these standard-duty fans are made of heavier-gauge materials, have a higher-horsepower motor that is totally enclosed to keep out debris, and feature more-robust motor bearings for a longer life.

Industrial wall-mount fans attach to a wall, ceiling, or beam so they won't take up floor space, block traffic flow, or create a tripping hazard. These air circulators are often used for cooling people, machinery, and products in aisles, tight spaces, and busy areas of manufacturing plants, warehouses, and shipping operations. Made of heavy-gauge materials suitable for daily use, these axial fans have a powerful motor that drives the fan blades to move large volumes of air and feature high-performance bearings for a long life. A guard encloses the fan blades to help protect them from damage and prevent injuries from accidental contact.
