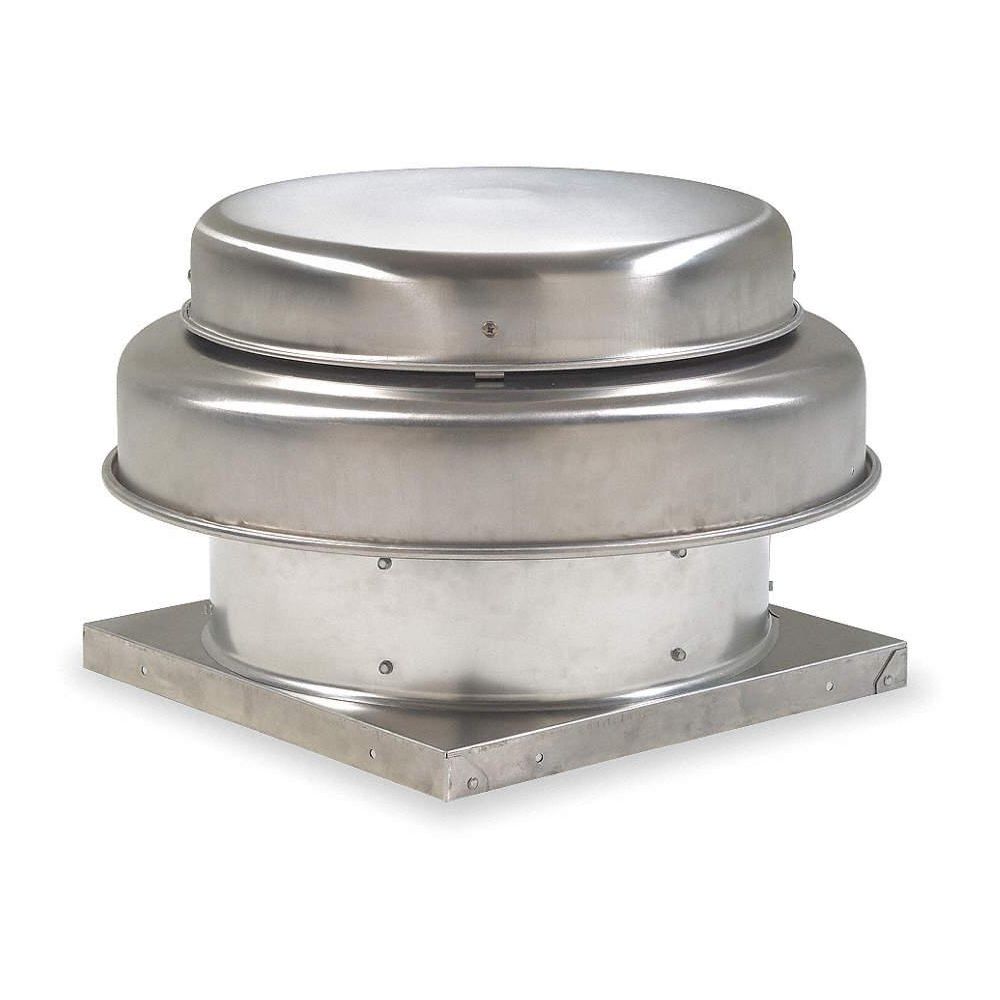

Dayton 1/8 HP 10"-Dia. Direct Drive Axial Exhaust Ventilator, 115 or 115/230V, 1750 RPM

Hover over image to magnify
Exhaust Vent,10 In
Exhaust Vent,10 In
Double tap image to magnify
Exhaust Vent,10 In
Exhaust Vent,10 In

#920814-5Pkg Qty: 1

$648.08 pkg | $648.08 ea
This item requires special shipping, additional charges may apply.

In Stock

Shipping to 43085
Expected to arrive Fri. Mar 28.
|

Technical Specifications

Key Specifications
Agency Compliance
UL705
Mounting Location
Roof Or Wall
Blade Diameter
10 in.
Overall Diameter
24 5/8 in.
Brand
DAYTON
Overall Height
15-1/4 in.
Item
Direct Drive Axial Exhaust Ventilator
Package Quantity
1
Mfr. Part Number
4YC86
Phase
1
Motor HP
1/8
Shipping Weight
34 lb.
Mounting Location
Roof Or Wall
Voltage
115
General
Airflow @ 0.000 in SP
550 cfm
Exhaust Airflow @ 0.500 in SP
189 cfm
Airflow @ 0.000 in SP - Range
0 to 1,999 cfm
For Air Type
Clean Air
Assembly
Fully Assembled
Housing Material Fabrication
Spun
Base Dimension
19 in Square
Includes
NEMA 1 Junction Box
Base Shape
Square
Includes Drive Package
Yes
Blade Design
Swept Steeply Pitched
Includes Motor
Yes
Brake Horsepower
1/20 hp
Maximum Fan Speed
1,750 RPM
Compatible Curb Manufacturer Part Number
2RB75, 2ZV82, 4C453, 4C670, 4HX38, 4HX46
Maximum Inlet Air Temperature
120 Degrees F
Compatible Damper Part Number
4HX64
Maximum Static Pressure
1/2 in wc
Compatible Speed Control
48C172
Motor Efficiency
Standard-Efficiency Motors
Current
1.7 A
Motor Enclosure Design
Totally Enclosed Air-Over (TEAO)
Cutout Length
14.5 in
Motor Horsepower
1/8 hp
Cutout Size
14.5 in L x 14.5 in W
Motor Location
In Airstream
Damper Size
12 x 12 in
Nameplate Voltage
115V AC
Exhaust Airflow @ 0.000 in SP
550 cfm
Nominal Voltage
115V AC
Exhaust Airflow @ 0.000 in SP - Range
0 to 1,999 cfm
Power Consumption
73 W
Exhaust Airflow @ 0.125 in SP
465 cfm
Propeller Shaft Diameter
1/2 in
Exhaust Airflow @ 0.250 in SP
347 cfm
Speed Controllable
Yes
Exhaust Airflow @ 0.375 in SP
255 cfm
Supply Airflow @ 0.000 in SP
550 cfm

Product Description

Single-phase spun aluminum ventilator provides steady exhausting or a steady supply of clean air.

Expertly Selected Product Pairings

Roof Mount Damper, 12"X12"
$50.29 pkg | $50.29 ea
Item: 910967-5 | Pkg Qty: 1
Roof Curb,Fixed,12 In H,17 1/2
$167.80 pkg | $167.80 ea
Item: 938408-1 | Pkg Qty: 1
