SCHNEIDER ELECTRIC

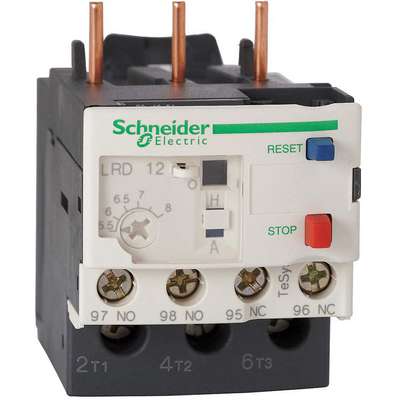

Schneider Electric Overload Relay, Trip Class: 20, Current Range: 23.0 to 32.0A, Number of Poles: 3
Hover over image to magnify
#920804-1 | Pkg Qty: 1
$86.75 pkg | $86.75 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
SCHNEIDER ELECTRIC
Pack Quantity
1
Current Range
23.0 to 32.0A
Sensing Method
Bimetallic
Depth
3 in.
Shipping Weight
.4 lb.
Height
2.99 in.
Starter Type
IEC
Item
Overload Relay
Type
IEC, Differential
Mfr. Part Number
LRD32L
Voltage
690 VAC
Number of Poles
3
Width
1.77 in.
General
Body Depth - Relay
3 in
Overload Relay Current Range
23 to 32A
Body Height - Relay
2.99 in
Reset Type - Relay
Manual
Body Width - Relay
1.77 in
Standards
UL, CSA, ATEX D 94/9/CE
Features
Single Phase Sensitivity, Differential
Trip Class
20
For Use With
TeSys D 9-32A, TeSys N Size 00-1 Contactors
Trip Class - Overload
20
Overall Height - Relay
2.99 in
Use With - Contactors and Starters
Mfr. Series LC1D09 to LC1D32 Contactors
Product Description
Provides motor overload protection for Type S, NEMA-style magnetic motor starters.
Documents
Item Barcode
Ovrload Relay,23 To 32A,3P,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 19YD11 | Ovrload Relay,23 to |
 | UNSPSC CODES | 39122330 | |
 | VMRS (ATA) CODES | 053-006-009 | Ovrload Relay,23 to |
