POWER FIRST

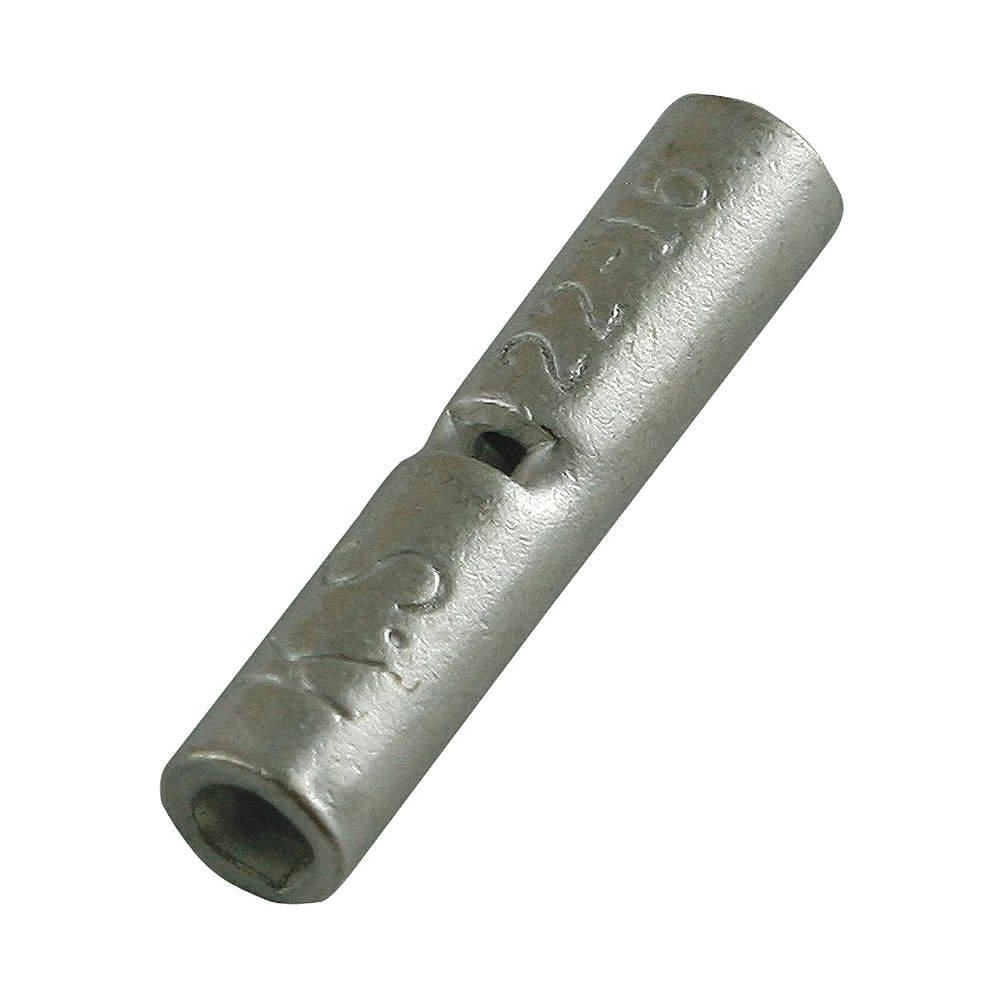

Power First Splice Connector: Bare, Butted, 600 V Max., 257 Degrees F Max. Temp., 100 PK

Hover over image to magnify
Connector,Noninsulated,
Connector,Noninsulated,
Double tap image to magnify
Connector,Noninsulated,
Connector,Noninsulated,

#920748-3Pkg Qty: 100

$28.20 pkg | $0.28 ea

In Stock

Shipping to 43085
Expected to arrive Wed. Mar 26.
|

Technical Specifications

Key Specifications
Brand
POWER FIRST
Maximum Temperature
257 deg. F
Color Code
Metallic
Maximum Voltage
600 V
Connection Material
Copper
Mfr. Part Number
4FRG7
Connection Type
Crimp
Overall Length
0.590 in.
Connector Type
Butt Splice
Package Quantity
100
Insulation Color
Bare
Seam
Butted
Insulation Type
Bare
Shipping Weight
.17 lb.
Item
Splice Connector
Tool Code
1YNA5
Length
0.59 in.
Wire Range
22 to 16 AWG
Material of Construction
Copper
General
Barrel Inside Diameter
0.071 in.
For Wire Type
Solid, Stranded
Barrel Outside Diameter
0.13 in
Maximum Conductors
2
Body Finish
Tin Plated
Number of Splices
1
Compatible Installation Tool Model Number
24C968
RoHS Compliant
Yes
Compatible with Product Type
Insulated Stranded Copper Cable
Seam Style
Seamless
Contact Finish
Tin
Strip Length
1/4 in
For Maximum Wire Insulation Diameter
0.051 in
Wire Size Range
22 AWG – 16 AWG
For Wire Size
16 AWG, 18 AWG, 22 AWG

Product Description

Noninsulated connector prevents electricity from leaking as it splices existing connections into other wires, without cutting them.
