TANIS

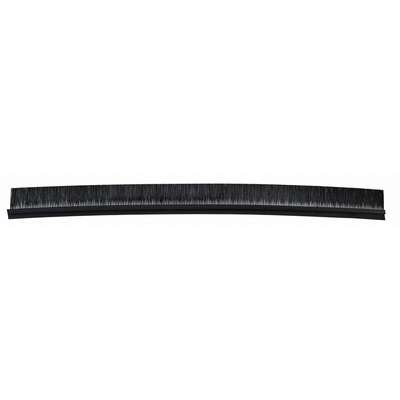

Tanis Nylon Strip Brush, 0.020" Bristle Diameter, H-Shaped, 3 ft. Overall Length, 5/16" Backing Width

Hover over image to magnify
Stapled Set Strip Brush,Pvc,
PI_Asset_1353511
Stapled Set Strip Brush,Pvc,
PI_Asset_1353511

#920727-4 | Pkg Qty: 1

$50.47 pkg | $50.47 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Backing
Flexible PVC
Fill Type
0.020 in. Level Nylon, 1 Row
Backing Material
PVC
Item
Stapled Set Strip Brush

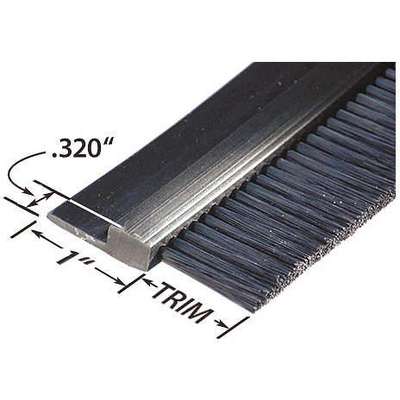

Backing Width
5/16 in.
Mfr. Part Number
FPVC143036
Brand
TANIS
Overall Length
3 ft.
Bristle Color
Black
Package Quantity
1
Bristle Diameter
0.020 in.
Profile
H-Shaped
Bristle Material
Nylon
Shipping Weight
.54 lb.
Bristle Type
Straight Wire
Type
Flexible PVC
General
Backing Flexibility
Flexible
Brush Length (In.)
3
Backing Height (In.)
1
Mounting Flange Size (In.)
1
Backing Material - Brush
PVC
Mounting Profile
H-Shaped
Backing Width (In.)
5/16
Overall Length (In.)
36
Bristle Trim Height
3 in
Overall Trim (In.)
3

Product Description

General purpose nylon strip brushes with flexible direct-mount backing each have densely compressed bristles that are securely held in a flexible backing that can be mounted to irregularly shaped surfaces where a rigid-backed brush could not be used. The brushes' nylon bristles provide good resistance to wear and abrasion and are effective when used in wet or intermittently hot environments. Also known as stapled-set strip brushes, strip brushes with direct-mount backing mount directly to conveyors. The brushes guide and separate items on the conveyor and clean debris from conveyed items and conveyor belts and parts.

Strip brushes with direct-mount backing, also called stapled-set strip brushes, have integrated plastic holders and can be directly mounted to conveyors. When the brush is worn, the brush and holder must be replaced. The plastic holder is lighter and provides more corrosion resistance than the metal holders used with standard strip brushes. Brushes with shorter bristles are stiffer and are good for aggressive applications such as heavy cleaning. Brushes with longer bristles are more flexible and are suitable for gentle applications such as positioning light objects or dusting. Strip brushes are mounted along conveyors to direct and separate items on the conveyor and clean debris from conveyed items and conveyor belts and parts. They are typically used in warehouses, package handling areas, manufacturing and assembly facilities, and distribution centers.

Item Barcode
9207274
Stapled Set Strip Brush,Pvc,
 NameItemDescription
Grainger DropshipGrainger Dropship1TCB8Stapled Set Strip Brush,
UNSPSC CODESUNSPSC CODES24101719
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Stapled Set Strip Brush,
