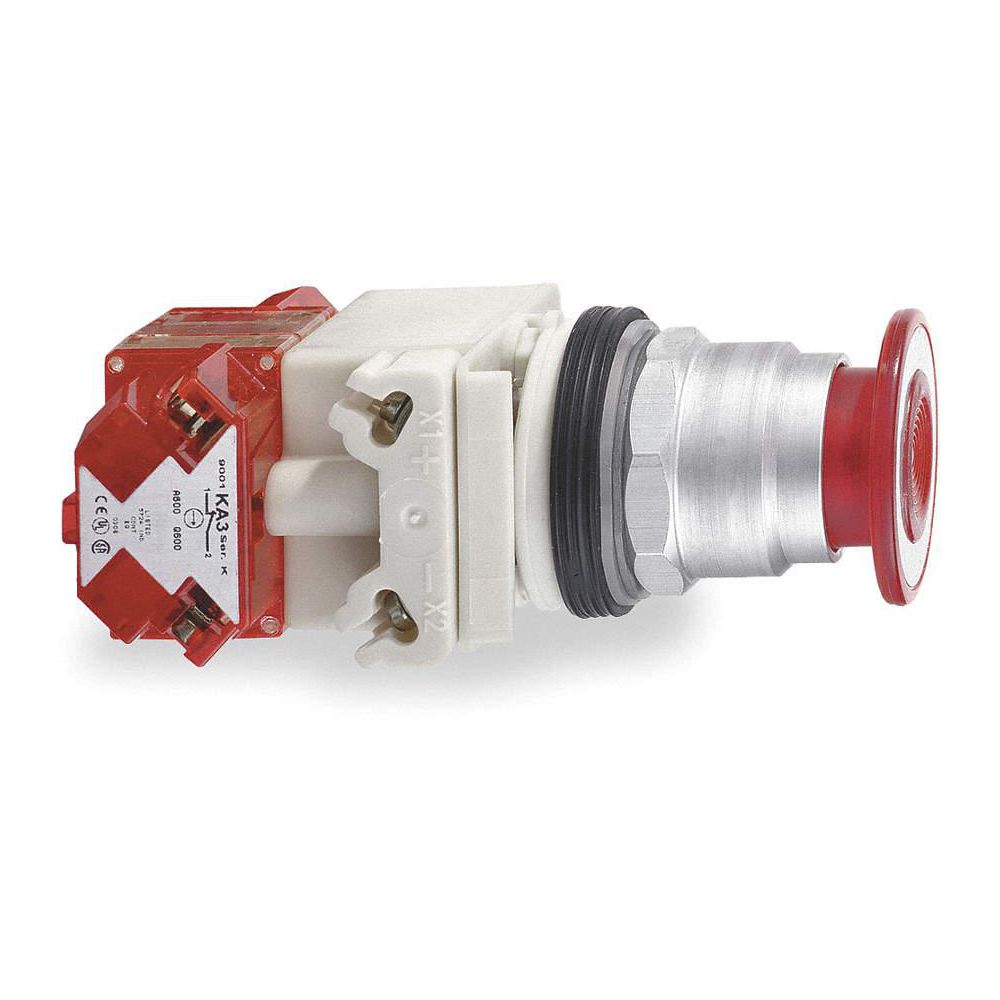

Schneider Electric 30 mm Incandescent 1NC/1NC Illuminated Push Button with 3 position Action, Red
#920725-1 | Pkg Qty: 1
Drop Ship Item
Technical Specifications
Key Specifications
General
Product Description
Illuminated Push Button, 30 mm, 3 position, Type of Operator 41mm Mushroom Head, Basic Material Metal, Plastic Head Material, 1NC/1NC Contact Form, Chrome Die Cast Aluminum Bezel, Color Red, Lamp Module Voltage 120V AC, Lamp Module Type Transformer, Lamp Type Incandescent, Contact Rating 10A @ 120V AC, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 6, IP Rating 66, Standards CE, CSA, UL, Terminal Connection Pressure Plate
Expertly Selected Product Pairings
Documents
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2EN41 | Illuminated Push Button, |
 | UNSPSC CODES | 39122217 | |
 | VMRS (ATA) CODES | 053-006-009 | Illuminated Push Button, |
