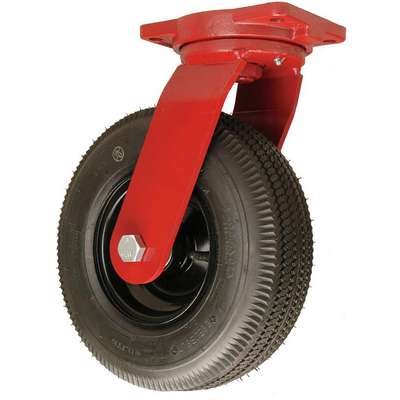

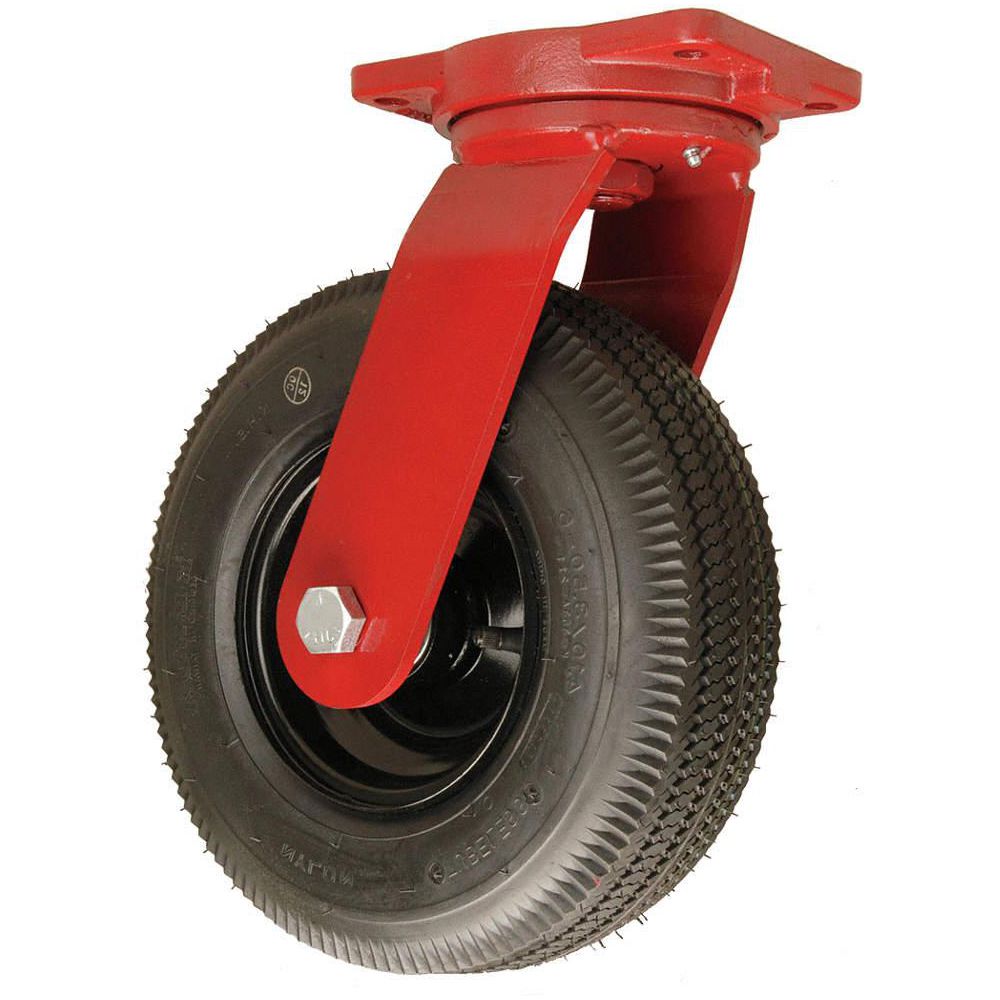

Light- Medium Duty, Swivel Plate Caster with Pneumatic Wheels; 625 lb. Load Rating, 12" Wheel Dia.

Hover over image to magnify
Swivel Pneumatic Caster,12 In.,
PI_Asset_928479
PI_Asset_947821
Swivel Pneumatic Caster,12 In.,
PI_Asset_928479
PI_Asset_947821

#920724-2 | Pkg Qty: 1

$363.48 pkg | $363.48 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Load Rating
625 lb.
Caster Brake Included
No
Mfr. Part Number
S-7012-PRB
Caster Brake Type
No Brake Included
Mounting Bolt Diameter
1/2 in.
Caster Load Rating Range
Light- Medium Duty
Mounting Height
15-1/2 in.
Caster Plate Hole Pattern
D
Non-Marking
No

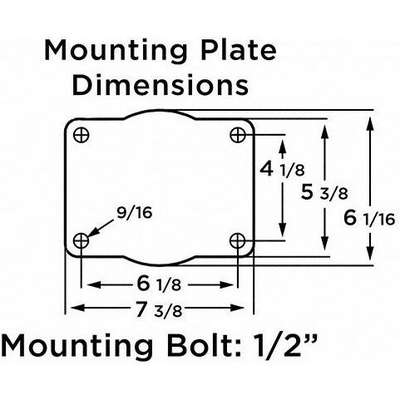

Caster Plate Size
6-1/8 in. x 7-1/2 in.
Number of Mounting Holes
4
Caster Raceway
Single Ball
Number of Wheels
1
Caster Wheel Bearings
Precision Ball
Outside Bolt Hole Spacing
4-1/8 in. x 6-1/8 in.
Caster Wheel/Tread Material
Rubber
Package Quantity
1
Caster/Wheel Tread
Sawtooth
Plate Caster Sub-Type
Swivel
Durometer
60 Shore A
Shipping Weight
26.6 lb.
Frame Finish
Enamel
Swivel Construction
Kingpin
Frame Material
Steel
Wheel Color
Black
Includes Thread Guards
No
Wheel Diameter
12 in.
Inside Bolt Hole Spacing
4-1/8 in. x 6-1/8 in.
Wheel Width
4-1/8 in.
Item
Plate Caster with Pneumatic Wheels
Wheel/Tread Hardness Rating
Soft
General
Brake Type
No Brake Included
Mounting Plate Size
6-1/8 in x 7-1/2 in
Caster Frame Material
Steel
Mounting Plate Size (Bolt Hole Pattern)
6-1/8 in x 7-1/2 in (D)
Caster Mounting Type
Plate
Operating Temperature Range
-30° to 120°F
Caster Product Group
Swivel Caster
Raceway
Single Ball
Caster Temp. Range Available
Yes
Swivel Raceway Type
Single Ball
Hub Materials
Steel
Tire Rim Dia.
6 in
Hub Position
Symmetrical
Wheel Bearing Type
Precision Ball
Hub Width
3-1/4"
Wheel Dia.
12 in
Load Rating Range
300 to 999 lb
Wheel/Tread Hardness
60 Shore A
Mounting Bolt Dia.
1/2 in
Wheel/Tread Material
Rubber
Mounting Plate Bolt Hole Pattern
D

Product Description

Extra-heavy-duty plate casters with pneumatic wheels have thick steel frames and heavy-duty bearings. They can bear heavier loads, withstand rougher terrain, and absorb more shock and impact than medium-duty plate casters with pneumatic wheels. Pneumatic wheels have air-filled tires that cushion heavy loads when transporting electronics and other equipment that is sensitive to shock and vibration. Extra-heavy-duty plate casters with pneumatic wheels are suitable for use on heavy carts, trucks, and other equipment used in indoor or outdoor towing applications over rough or uneven terrain, such as aerospace ground support, airport baggage trolleys, and manufacturing and maintenance operations.

Smooth-ride pneumatic, semipneumatic, and flat-free plate casters have air-filled, foam-filled, or solid-rubber caster wheels that allow them to absorb more shock and vibration, provide more stability, and produce less noise than other types of plate casters. These casters are suitable for transporting fragile or vibration-sensitive loads and for moving loads over rough or uneven surfaces in outdoor areas and industrial facilities. The casters have a mounting plate that mounts onto the bottom of carts and other equipment to allow the equipment to roll, reducing the effort it takes to move or reposition the equipment. They come in swivel and rigid versions. The swivel casters can rotate 360°, allowing equipment to change directions while rolling. The rigid casters roll in a straight line. Two rigid plate casters can be paired with two swivel casters to allow the equipment to both maneuver around curves and obstacles and maintain a straight course while rolling.

Item Barcode
9207242
Swivel Pneumatic Caster,12 In.,
 NameItemDescription
Grainger DropshipGrainger Dropship36T707Swivel Pneumatic
UNSPSC CODESUNSPSC CODES31162701
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Swivel Pneumatic
