PHILIPS ADVANCE

Philips Advance Electronic Ballast, 32 Max. Lamp Watts, 120-277 V, Programmed Start, No Dimming

Hover over image to magnify
Electronic Ballast,Programmed,
PI_Asset_1763506
Electronic Ballast,Programmed,
PI_Asset_1763506
Philips Advance Electronic Ballast, 32 Max. Lamp Watts, 120-277 V, Programmed Start, No Dimming Video

#920666-2 | Pkg Qty: 1

$41.75 pkg | $41.75 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Amps AC
0.33 to 0.78
Lamp Watts
32 W
Ballast Family
Optanium IOP
Length
9-1/2 in.
Ballast Type
Electronic
Light Output
Low
Brand
PHILIPS ADVANCE
Mfr. Part Number
IOP-4PSP32-LW-SC
Dimming
No
Package Quantity
1
Dimming Type
No Dimming
Shipping Weight
1.3 lb.
Height
1-3/16 in.
Sockets Included
No
Input Voltage
120 to 277 VAC
Start Type
Programmed
Item
Fluorescent Ballast
Voltage
120/277
Lamp Type
T8 Lamps
Width
1-11/16 in.
General
Ballast Bulb Type
T8
Number of F28T8 Lamps
3 or 4
Ballast Factor
0.71
Number of F32T8 Lamps
3 or 4
Ballast Start Type
Programmed
Number of F32T8(26W) Lamps
3 or 4
Brand and Series
Optanium
Number of F32T8(28W) Lamps
3 or 4
Dimming Method
No Dimming
Number of F32T8(30W) Lamps
3 or 4
Dimming Range
No Dimming
Number of F32T8U Lamps
3 or 4
Max. Bulb Watts
32 W
Operating Amps @ 120V
0.78 A
Min. Starting Temp.
0 Degrees F
Power Factor
0.98
Number of Bulbs Supported
3, 4
Standards
CEC Listed, CEE Rated, CSA, NEMA, RoHS Compliant
Number of F17T8 Lamps
3 or 4
Total Harmonic Distortion
0.1
Number of F25T8 Lamps
3 or 4

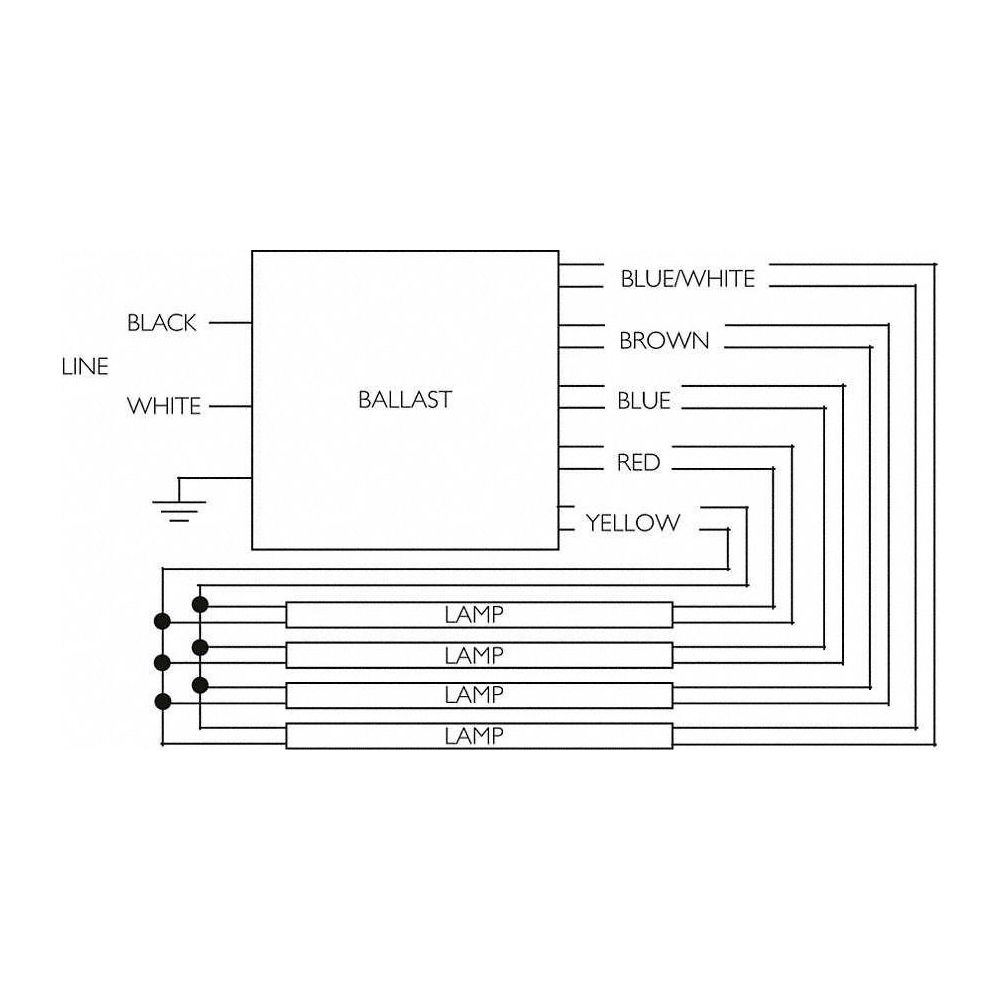

Wiring Type
Series

Product Description

Programmed rapid-start electronic fluorescent ballasts turn on lights near-instantaneously. They are more energy efficient and less damaging to fluorescent light bulbs than instant-start ballasts and rapid-start ballasts. They are used in lighting fixtures that will be turned on or off frequently via occupancy sensors and other lighting controls that automatically operate the lights. The ballasts provide a small amount of voltage to preheat the bulbs' filaments before the bulbs turn on. This small initial voltage is supplied for a specific amount of time to avoid glow current, which can damage the light bulbs.
