AIR HANDLER

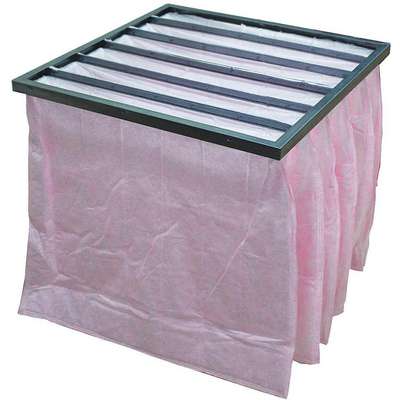

Air Handler Pocket Air Filter, 24x24x15, MERV 13, Pink, Synthetic, Number of Pockets: 8

Hover over image to magnify
Pocket Air Filter,Synthetic,
PI_Asset_1370466
Pocket Air Filter,Synthetic,
PI_Asset_1370466

#920637-8 | Pkg Qty: 4

$224.48 pkg | $56.12 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Actual Depth
15 in.
Material
Synthetic
Actual Height
23-3/8 in.
Maximum Temperature
150 deg. F
Actual Width
23-3/8 in.
Mfr. Part Number
2JVD4
Air Flow
500 fpm
Nominal Depth
15 in.
Brand
AIR HANDLER
Nominal Height
24 in.
Color Family
Pink
Nominal Width
24 in.
Filter Efficiency
85%
Number of Pockets
8
Item
Pocket Air Filter
Package Quantity
4
MERV
13
Shipping Weight
20.8 lb.
General
Actual Filter Size
23-3/8 in x 23-3/8 in x 15 in
Max. Velocity
500 fpm
Air Filter Header Type
Single Header
Media Material
Synthetic
Filter Efficiency - Air Filters
80% to 85%
Nominal Filter Size
24x24x15
Frame or Header Material
Galvanized Steel
Performance Rating
MERV 13
Initial Resistance @ 300 fpm
0.36 in wc
Standards
UL 900
Initial Resistance @ 500 fpm
0.60 in wc
Style - Air Filters
Bag

Product Description

MERV 13 pocket air filters provide close to 90% efficiency for filtering particles between 3 and 10 microns in size (such as mold spores, dusting aids, and cement dust). They also provide between 80% and 85% efficiency for filtering particles between 1 and 3 microns in size (such as legionella, lead dust, humidifier dust, coal dust, and nebulizer droplets) and between 35% and 50% efficiency for filtering particles between 0.30 and 1 micron in size (such as bacteria, most smoke, sneeze nuclei, insecticide dust, copier toner, and face powder). They capture contaminants more efficiently than MERV 11 pocket air filters.

Pocket air filters are often installed in HVAC systems in auto shops, data centers, food and beverage plants, industrial sites, and schools to trap contaminants in the air stream and boost indoor air quality. They also keep the contaminants from building up in the equipment and damaging it. These filters are best suited for applications where air is constantly flowing through the filter since they may deposit some captured material back into the air stream when they deflate. Also called bag filters, pocket filters have a bag-like filter element that is stitched into pockets. They trap more particles than non-pleated panel filters and need to be changed less often. These filters have a MERV (minimum efficiency reporting value) rating of 8 to 14. A filter's MERV rating measures how efficiently a filter traps contaminants in the air stream based on the size of the particles it can effectively capture. The higher a filter's MERV rating is, the more effectively it traps small particles.
