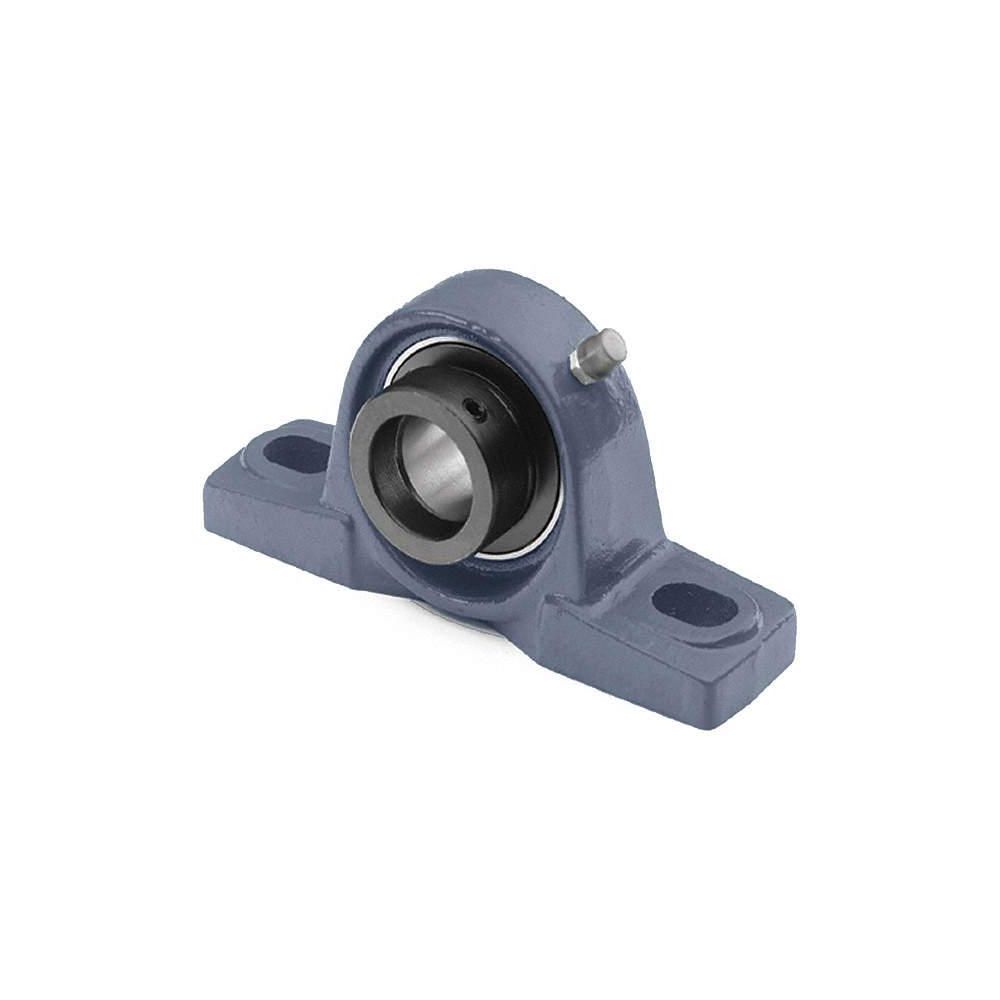

Pillow Block Bearing, Number of Bolts: 2, Ball Bearing Type, 1-15/16" Bore Dia.

Hover over image to magnify
Pillow Block Bearing,Ball,1-15/
Pillow Block Bearing,Ball,1-15/
Double tap image to magnify
Pillow Block Bearing,Ball,1-15/
Pillow Block Bearing,Ball,1-15/

#920620-6Pkg Qty: 1

$101.30 pkg | $101.30 ea

In Stock

Shipping to 43085
Expected to arrive Tue. Mar 25.
|

Technical Specifications

Key Specifications
Bearing Housing Material Type
Cast Iron
Mfr. Part Number
HCPK210-31
Bearing Insert Material
52100 Chrome Steel
Number of Bolts
2
Bearing Insert Type
Ball
Overall Height
112 mm
Bearing Lubrication
Shell Alvania RL2 or NLGI #2 Equivalent
Overall Length
203 mm
Bolt Hole Center-to-Center
159 mm
Overall Width
62.7 mm
Bolt Size
5/8 in.
Package Quantity
1
Bore Diameter
1-15/16 in.
Series
HCP
Brand
TRITAN
Shaft Locking Type
Eccentric Locking Collar
Dimension E
1-5/8 in.
Shipping Weight
6.64 lb.
Dynamic Load Capacity
7,868 lb.
Static Load Capacity
5215 lb.
Finish
Painted
Temperature Range
-40 deg. F to 250 deg. F
Item
Pillow Block Bearing
General
Standards
AFBMA, ISO

Product Description

Pillow Block Bearing, Ball Bearing Insert Type, 1 15/16 in Bore Dia., Bolt Hole Center-to-Center 159 mm, Mounting Surface to Shaft Center 55.5 mm, Cast Iron Bearing Housing Material Type, Eccentric Locking Collar Shaft Locking Type, 52100 Chrome Steel Bearing Insert Material, HCP Series, Number of Bolts 2, Bolt Size 5/8 in, Overall Height 112 mm, Overall Width 62.7 mm, Overall Length 203 mm, Bearing Lubrication Shell Alvania RL2 or NLGI #2 Equivalent, Dynamic Load Capacity 7,868 lb
