BUSSMANN

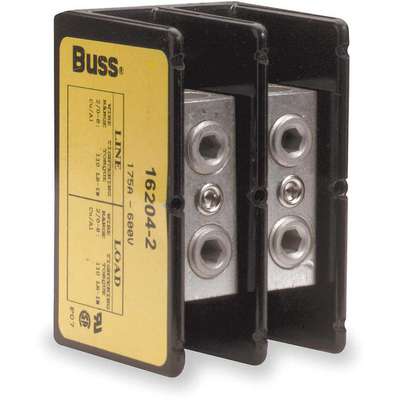

Bussmann Miniature Distribution Block, 175 Max. Amps, Number of Poles: 2
Hover over image to magnify
#920619-8 | Pkg Qty: 1
$42.01 pkg | $42.01 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
175 A
Power Distribution Block Design
Open
Brand
BUSSMANN
Primary Connections/Pole
1
Depth
1-3/4 in.
Primary Wire Range
14 to 2/0 AWG CU, 8 to 2/0 AWG AL
Item
Miniature Distribution Block
Secondary Connection/Pole
1
Length
2.88 in.
Secondary Wire Range
14 to 2/0 AWG CU, 8 to 2/0 AWG AL
Maximum Amps
175
Shipping Weight
.25 lb.
Mfr. Part Number
16204-2
Type
Miniature 16000 Series
Number of Poles
2
Voltage Rating
600 VAC/DC
Package Quantity
1
Width
1.88 in.
General
For Conductor Material
Aluminum, Copper
Line Side Wire Size Range
14 AWG – 2/0 AWG
For Line Aluminum Wire Size - Maximum
2/0 AWG
Load Connections/Pole
1
For Line Aluminum Wire Size - Minimum
8 AWG
Load Side Connection Type
Lug
For Line Copper Wire Size - Maximum
2/0 AWG
Load Side Wire Range
14 AWG – 2/0 AWG
For Line Copper Wire Size - Minimum
14 AWG
Maximum Current - Aluminum Conductor
175 A
For Load Aluminum Wire Size - Maximum
2/0 AWG
Maximum Current - Copper Conductor
175 A
For Load Aluminum Wire Size - Minimum
8 AWG
RoHS Compliant
Yes
For Load Copper Wire Size - Maximum
2/0 AWG
Standards
UL 1059, CSA Class 6228-01
For Load Copper Wire Size - Minimum
14 AWG
Terminal Material
Aluminum
Line Connections/Pole
1
UL 94 Flammability Rating
V-0
Line Side Connection Type
Lug
Product Description
This efficient aluminum block splices cables or splits primary power into a wide range of secondary circuits and provides a fixed tap-off point. It accepts aluminum or copper wire, and saves splicing and taping time for contractor rework.
Item Barcode
Min Pwr Dist Block,175A,2P,1P
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 1EF56 | Min Pwr Dist Block,175A, |
 | UNSPSC CODES | 39121410 | |
 | VMRS (ATA) CODES | 053-006-009 | Min Pwr Dist Block,175A, |
