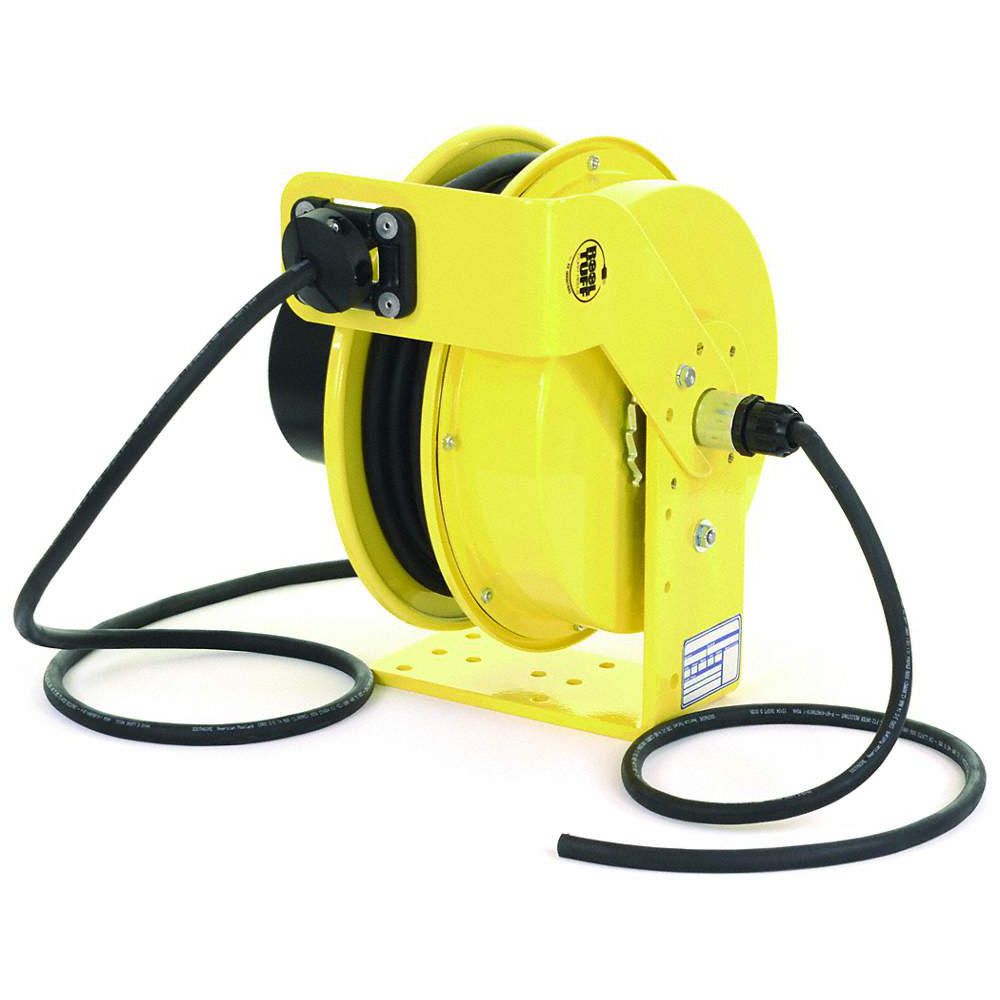

KH Industries 50 ft. Constant Tension Cord Reel; Heavy Industrial Grade; 600 VAC; Yellow Reel Color

Hover over image to magnify
Cord Reel,50 Ft,12/3,So,Yellow,
PI_Asset_1368597
Cord Reel,50 Ft,12/3,So,Yellow,
PI_Asset_1368597

#920562-8 | Pkg Qty: 1

$1,793.19 pkg | $1,793.19 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
KH INDUSTRIES
NEMA Configuration
No Configuration
Cord Color
Black
NEMA Plug Configuration
None
Cord Ending
No Configuration
NEMA Receptacle Configuration
None
Cord Ending NEMA Configuration
No Configuration
Number of Conductors
3
Cord Included
Yes
Number of Outlets
0
Cord Length
50 ft.
Overall Depth
14-1/2 in.
Cord Type
SO
Overall Height
15 in.
Depth
14-1/2 in.
Overall Width
14-1/2 in.
Description/Special Features
Blunt Ends
Package Quantity
1
Enclosed Reel
No
Reel Color
Yellow
Enclosure Rating
NEMA 4X
Reel Material
Steel
Feeder Cord Ending
Flying Lead
Reel Mounting
Bench, Ceiling, Wall
Feeder Cord Ending NEMA Configuration
No Configuration
Shipping Weight
78 lb.
Grade
Heavy Industrial
Slip Ring Rating
35A @ 600 V
Height
15 in.
Temperature Range
-22 deg. F to 194 deg. F
Indoor/Outdoor
Indoor/Outdoor
Type
Industrial Constant Tension with Cord
Item
Constant Tension Cord Reel
Voltage
600 VAC
Maximum Amps
20
Watts
12000 W
Mfr. Part Number
RTFH3S-WW-B12K
Width
14-1/2 in.
NEC Cord Designation
SOOW
Wire Size
12 AWG
General
Cord Length - Ext. Cords and Outlet Strips
50 ft.
NEC Cord Designation - Ext. Cords and Outlet Strips
SOOW
Features
Blunt Ends
Retractable Cord Ending
Flying Lead
Feeder Cord Ending Configuration
Flying Lead
Retractable Cord Ending Configuration
Flying Lead
Gauge/Conductor - Ext. Cords and Outlet Strips
12/3
Retractable Cord Length
50 ft
Grade - Ext. Cords and Outlet Strips
Heavy Industrial
Special Features
Engineered for Stretch Application Use
Includes
Constant-Tension, Ratchet, Engineered for Stretch Application Use
Standards
UL, CSA, NEMA 4X
Includes Cord
Yes
Tension Method
Field Convertible
Indoor / Outdoor
Indoor/Outdoor
Trade Designation
SOOW
Location
Outdoor
Voltage - Ext. Cords and Outlet Strips
600VAC
Max. Amps - Ext. Cords and Outlet Strips
20.0
Winding Method
Spring Retraction

Product Description

Self-retracting cord reels have a spring mechanism that automatically winds the cord back on the reel, making them easier to use than hand-winding cord reels. A stop, or ratchet, holds the cord at the desired length after it's pulled out for use. A quick tug on the cord disengages the stop, causing the spring to fully retract the cord. These reels provide access and storage of extension cords while protecting the cord from wear, tangling, and kinking.

Standard cord reels are spools that hold extension cords to provide access and storage while protecting them from tangling, kinking, and other damage. The cord can be extended to exactly the length needed to power equipment located at a distance from a power source. Self-retracting and motor-driven cord reels automatically wind extended cord back on the reel, while hand-winding cord reels have a handle or knob for winding the cord manually. These cords can be mounted out of the way in a central location, such as on a wall or ceiling, to keep a workspace organized and help reduce tripping hazards. They are commonly used in retail, commercial, and manufacturing applications, including pressure washing, landscaping and ground maintenance, and service garages.
