JACOBS

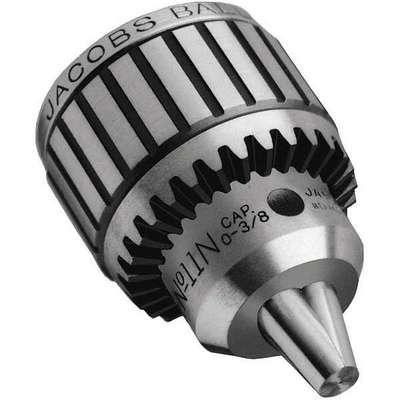

Keyed Drill Chuck, 0.125" to 0.750" Capacity, 4JT Mounting Size
Hover over image to magnify
#920555-1 | Pkg Qty: 1
$670.24 pkg | $670.24 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Bearing Type
Ball
Material
Steel
Brand
JACOBS
Mfr. Part Number
30233
Capacity Maximum
0.750 in.
Mounting Size
JT4
Capacity Minimum
0.125 in.
Mounting Type
Jacobs Taper
Chuck Type
Keyed
Nominal Capacity
3/4 in.
Closed Length
5.12 in.
Open Length
3.95 in.
Construction
Steel
Package Quantity
1
Item
Drill Chuck
Product Type
Drill Chuck
Key Number
K4
Shipping Weight
4.49 lb.
Keying
Keyed
Type
Heavy Duty
General
Features
One-Piece Sleeve Eliminates Crack Between Driving Teeth
Material - Machining
High Speed Steel
For Use With
Production Drilling Equipment Such as Jig Borers, Milling Marchines, Lathes and Radials
Max. Drill Capacity
3/4 in
Includes
Chuck Key
Min. Drill Capacity
1/8 in
Product Description
Ball and Plain Bearing Super Chuck® Drill Chucks
- Chuck jaws are center ground for absolute straightness and alignment. Through-hardened sleeve teeth and hardened chuck nose provide superior wear resistance.
- Ball Bearing
- Engineered for heavy-duty, close tolerance production drilling. Designed to work with a wide range of production drilling equipment, jig borers, milling machines, lathes, and radials. Ball thrust bearings reduce friction and increase grip torque and overall performance.
