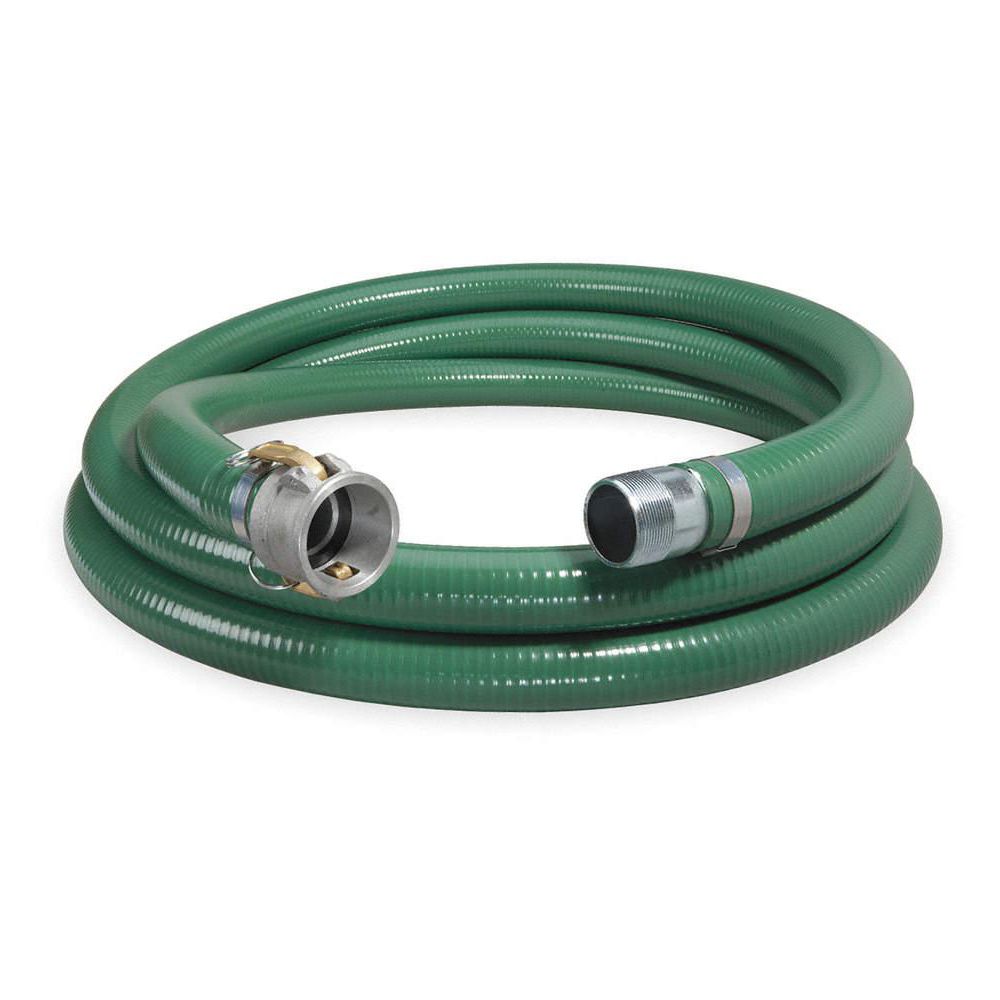

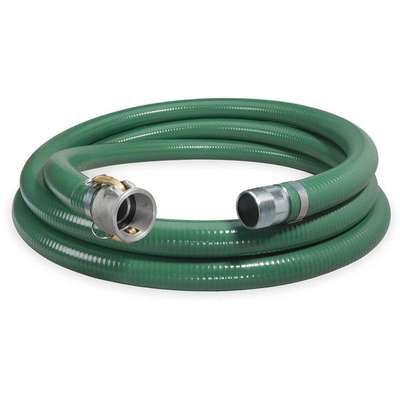

Water Suction and Discharge Hose: 2 in Hose Inside Dia., 79 psi, Green, 2 in x 2 in Fitting Size

Hover over image to magnify
Suction And Discharge Hose,2
Suction And Discharge Hose,2

#920519-2 | Pkg Qty: 1

$132.31 pkg | $132.31 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Bend Radius
8 in.
Maximum Temperature (Deg. F)
150
Brand
APPROVED SUPPLIER
Mfr. Part Number
SP200-20CN-G
Color Family
Green
Outside Diameter
2.32 in.
Fitting Size
2 in.
Package Quantity
1
Fitting Type
Aluminum Female Camlock x Steel MNPT
Reinforcement
Rigid PVC Helix
Fittings
Alum. (F) Camlock x Steel (M)NPT
Resists
Burst
Inside Diameter
2 in.
Shipping Weight
18 lb.
Item
Water Suction and Discharge Hose
Tube Material
PVC
Length
20 ft.
Vacuum Rating
29 in. Hg
Maximum Pressure
79 psi
General
Compatible Chemicals
Deionized Water, Fresh Water, Salt Water
Hose Fitting B Material
Carbon Steel
Fitting Material
Aluminum x Carbon Steel
Hose Fitting B Size
2 in
For Media Type
Water
Hose Fitting B Type
MNPT
Hose Configuration
Coupled Assembly
Hose Fittings
Aluminum 2 in Cam and Groove C x Carbon Steel 2 in MNPT
Hose Cover Material
PVC
Hose Tube Material
PVC
Hose Fitting A Material
Aluminum
Includes
Gasket
Hose Fitting A Size
2 in
Max. Working Pressure @ 70 F
79 psi
Hose Fitting A Type
Cam and Groove C

Product Description

These PVC (polyvinyl chloride) suction and discharge hose assemblies are used to vacuum or pump water in construction and septic-tank cleaning operations and for general industrial and agricultural applications that require a hose with mild chemical resistance. The hoses are made from PVC, which provides good flexibility and mild resistance to chemicals. They have rigid PVC helix reinforcement that helps them keep their shape when not in use and prevents the hoses from collapsing in suction applications. These hose assemblies have fittings installed on both ends for connecting the hose to compatible equipment.

Combination water suction and discharge hoses are used to vacuum (suction) or pump (discharge) water from one location to another. These hoses have rigid reinforcement that helps the hose keep its shape when not in use and prevents it from collapsing in suction applications. Water suction and discharge hoses are used in construction, mining, agricultural, and industrial applications.
