PHILIPS ADVANCE
Philips Advance Metal Halide HID Ballast Kit, 250 Max. Lamp Watts, 120/208/240/277 V, Probe Ballast Start Type
Hover over image to magnify
#920511-7 | Pkg Qty: 1
$154.95 pkg | $154.95 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
ANSI Code
M58
Lamp Type
Metal Halide
Brand
PHILIPS ADVANCE
Lamp Watts
250 W
Frequency
60 Hz
Length
3-15/16 in.
Height
3-3/4 in.
Mfr. Part Number
71A5771-001D
Housing Material
Steel
Number of Lamps
1
Hz
60
Package Quantity
1
Input Voltage
120 to 277 VAC
Shipping Weight
9.8 lb.
Input Watts
294 in.
Start Type
Probe
Insulation Class
H
Voltage
120/208/240/277 V
Item
HID Ballast Kit
Width
4-1/4 in.
General
Ballast Bulb Type
Metal Halide
Min. Starting Temp.
-20 Degrees F
Ballast Factor
1
Number of Bulbs Supported
1
Ballast Start Type
Probe
Operating Amps @ 120V
2.6 A
Brand and Series
Advance
Operating Amps @ 208V
1.5 A

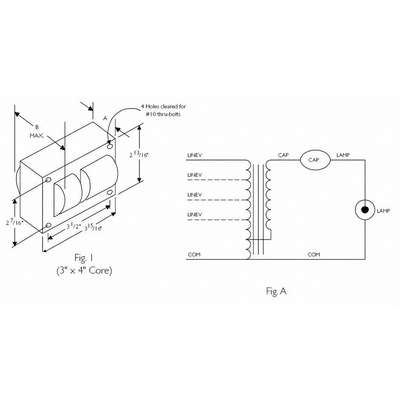

Figure Number
A25
Operating Amps @ 240V
1.3 A
Footnotes
6
Operating Amps @ 277V
1.1 A
Includes
Capacitor, Coil, Core, Hardware, Mounting Bracket
Operating Amps @ 480V
0.7 A
Max. Bulb Watts
250 W
Standards
CSA Certificate, RoHS Compliant, ULR
Min. Bulb Watts
250 W
Product Description
Metal-halide ballast kits include parts for replacing a ballast and its coordinating components in lighting fixtures that use metal-halide HID bulbs.
Expertly Selected Product Pairings
Item Barcode
Hid Ballast Kit,Metal Halide,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 1N108 | HID Ballast Kit,Metal |
 | UNSPSC CODES | 39111801 | |
 | VMRS (ATA) CODES | 053-006-009 | HID Ballast Kit,Metal |
