DAYTON

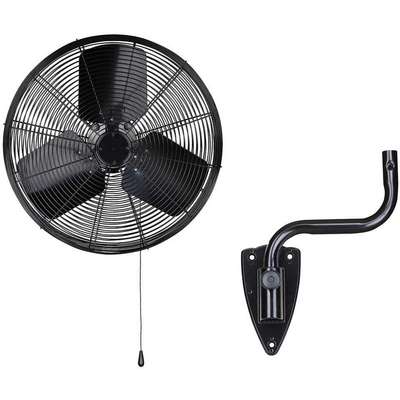

Dayton Light-Duty Industrial Fan: Light-Duty Industrial Fan, 20 in Blade Dia, 5,100/6,200 cfm, Wall

Hover over image to magnify
Air Circulator,20 In,6200 Cfm,
Air Circulator,20 In,6200 Cfm,

#920474-1 | Pkg Qty: 1

$347.00 pkg | $347.00 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Air Circulator Height
38-7/8 in.
Motor RPM
1100/925
Air Flow
5,100/6,200 cfm
Motor Type
Permanent Split Capacitor
Assembled/Unassembled
No
Mounting Location
Wall
Bearing Type
Ball
NEMA Plug Configuration
5-15P
Blade Diameter
20 in.
Number of Blades
3
Blade Material
Aluminum
Number of Conductors
3
Brand
DAYTON
Oscillating
Yes
Cord Length
9 ft.
Package Quantity
1
Drive Type
Direct
Phase
1
Duty
Light Duty
Shaft Diameter
12 mm
Guard Material
Steel
Shipping Weight
35.25 lb.
Hz
60 Hz
Sound Level
68/65 dBA
Item
Industrial Fan
Standards
cULus Listed
Mfr. Part Number
13V402
Thermal Protection
Automatic
Mobile/Stationary
Stationary
Voltage
120V AC
Motor Enclosure
Totally Enclosed Air Over
Watts
220/180
Motor HP
1/5
Width
22-1/4 in.
Motor Insulation
Class B
General
Air Velocity @ 10 Ft.
571/522 fpm
Fan Cord Length
9 ft
Air Velocity @ 20 Ft.
321/303 fpm
Fan Housing Material
Steel
Air Velocity @ 40 Ft.
174/173 fpm
Fan Mounting Location
Wall
Air Velocity @ 60 Ft.
135/41 fpm
Includes
Mounting Hardware, Secondary Safety Support Cable, Wall Bracket
Application
Spot Cooling and People Cooling
Max. Ambient Temp.
104 Degrees F
Assembly Required
Yes
Wheeled Base
Stationary
Environmental Applications
Industrial
Wire Guard Finish
Polyester Powder Coated Black

Product Description

Light-duty industrial wall-mount fans cool light manufacturing areas, warehouses, and other dry, clean spaces where floor space is limited. These air circulators are used where an office fan is inadequate and a heavier-duty or wet-location industrial fan isn't needed. Compared to standard-duty industrial fans, these light-duty fans are made of lighter-gauge materials and have a lower-horsepower motor with less-robust bearings.

Industrial wall-mount fans attach to a wall, ceiling, or beam so they won't take up floor space, block traffic flow, or create a tripping hazard. These air circulators are often used for cooling people, machinery, and products in aisles, tight spaces, and busy areas of manufacturing plants, warehouses, and shipping operations. Made of heavy-gauge materials suitable for daily use, these axial fans have a powerful motor that drives the fan blades to move large volumes of air and feature high-performance bearings for a long life. A guard encloses the fan blades to help protect them from damage and prevent injuries from accidental contact.
