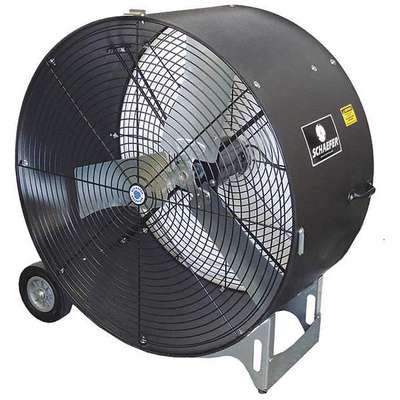

Schaefer Standard-Duty Industrial Fan: Std-Duty Industrial Fan, 36 in Blade Dia, 1 Speeds, 1 Phase

Hover over image to magnify
Air Circulator,36in.,115V,Black
Air Circulator,36in.,115V,Black

#920473-4 | Pkg Qty: 1

$999.99 pkg | $999.99 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Air Circulator Height
39-3/4 in.
Motor Insulation
Class F
Air Flow
11,700 cfm
Motor RPM
825
Assembled/Unassembled
Yes
Motor Type
Permanent Split Capacitor
Bearing Type
Ball
Mounting Location
Floor
Blade Diameter
36 in.
Mounting Location
Floor
Blade Material
Galvanized Steel
Number of Blades
3
Brand
SCHAEFER
Oscillating
No
Cord Length
5 ft.
Outside Diameter
37-3/4 in.
Drive Type
Direct
Package Quantity
1
Duty
Standard Duty
Phase
1
Guard Material
Steel
Shaft Diameter
5/8 in.
Hz
60 Hz
Shipping Weight
93 lb.
Item
Industrial Fan
Sound Level
75 dBA
Mfr. Part Number
VKM36-B-O
Thermal Protection
Automatic
Mobile/Stationary
Mobile
Voltage
115/230V AC
Motor Enclosure
Totally Enclosed Air Over
Watts
439
Motor HP
1/2
Width
40-3/4 in.
General
Air Velocity @ 10 Ft.
700 fpm
Fan Housing Material
Polyethylene
Air Velocity @ 20 Ft.
550 fpm
Fan Mounting Location
Floor
Air Velocity @ 40 Ft.
400 fpm
Max. Ambient Temp.
104 Degrees F
Application
Spot Cooling and People Cooling
Standards
UL, cUL, CSA
Environmental Applications
Industrial
Wheeled Base
Mobile
Fan Cord Length
5 ft
Wire Guard Finish
Black Powder Coated

Product Description

Standard-duty industrial mobile and stationary floor fans cool heavy manufacturing areas and other dusty or dirty environments. Compared to light-duty industrial fans, these standard-duty fans are made of heavier-gauge materials, have a higher-horsepower motor, and feature more-robust motor bearings for a longer life.

Industrial mobile and stationary floor fans sit close to the ground to resist tipping over, even when bumped, while providing a powerful stream of air at floor level. These air circulators are often used for spot cooling workstations or production lines and for general cooling in manufacturing plants, warehouses, and shipping operations. Made of heavy-gauge materials suitable for daily use, these axial fans have a powerful motor that drives the fan blades to move large volumes of air and feature high-performance bearings for a long life. A guard encloses the fan blades to help protect them from damage and prevent injuries from accidental contact. Mobile floor fans have wheels, so they can be rolled from one location to another as cooling needs change. Stationary floor fans are used in applications where fans don't need to be frequently relocated, but they are generally light enough to carry between locations.
