DAYTON

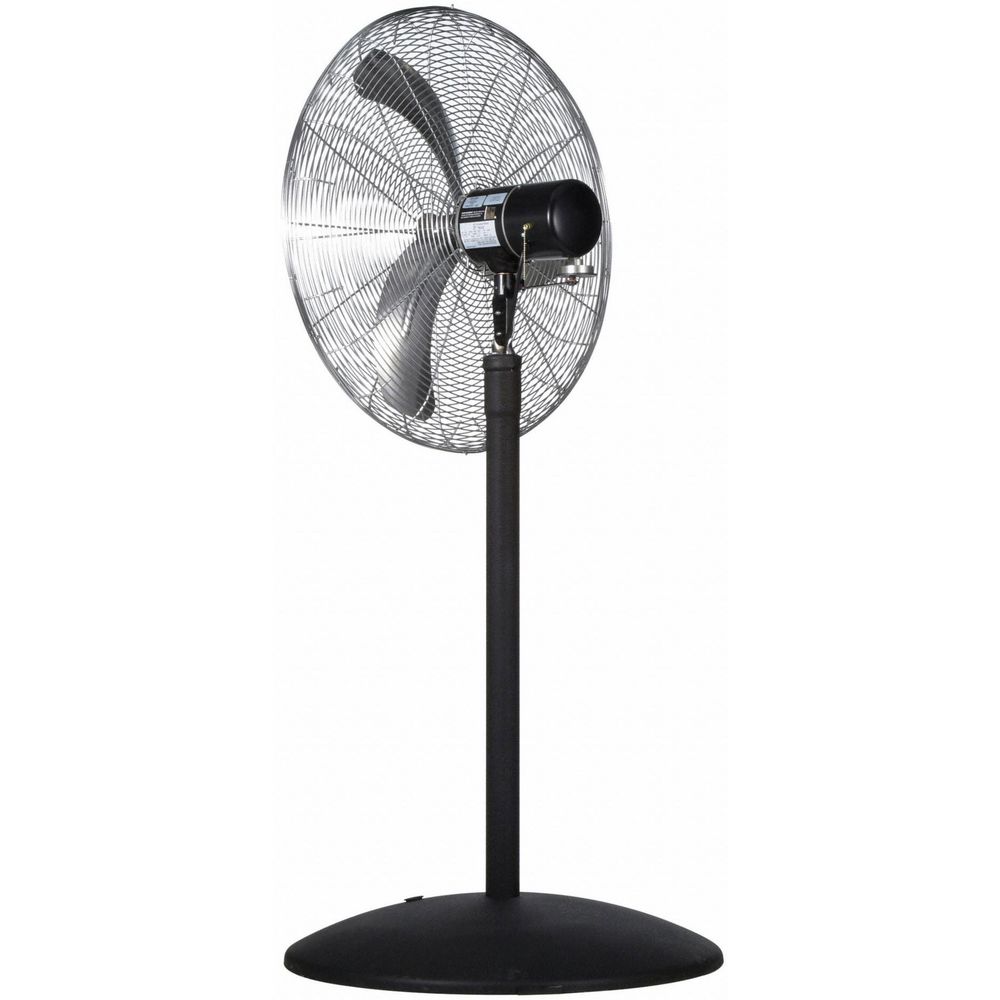

Dayton 30" Standard-Duty Quiet-Design Industrial Fan, Stationary, Pedestal, 115 VAC

Hover over image to magnify
Quiet Design Aircirc,30 In,
PI_Asset_1375453
Quiet Design Aircirc,30 In,
PI_Asset_1375453

#920451-4 | Pkg Qty: 1

$1,020.36 pkg | $1,020.36 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Air Flow
4,063/5,859/7,996 cfm
Motor RPM
1045/789/561
Assembled/Unassembled
No
Motor Type
Permanent Split Capacitor
Bearing Type
Ball
Mounting Location
Pedestal
Blade Diameter
30 in.
NEMA Plug Configuration
5-15P
Blade Material
Cast Aluminum
Number of Blades
3
Brand
DAYTON
Number of Conductors
3
Cord Length
15 ft.
Oscillating
Yes
Drive Type
Direct
Outside Diameter
33-5/16 in.
Duty
Standard Duty
Package Quantity
1
Guard Material
Steel
Phase
1
Height Range
Adj 60 - 96 in.
Shaft Diameter
5/8 in.
Hz
60 Hz
Shipping Weight
50 lb.
Item
Industrial Fan
Sound Level
75/69/63 dBA
Mfr. Part Number
20955
Standards
UL
Mobile/Stationary
Stationary
Thermal Protection
Automatic
Motor Enclosure
Totally Enclosed Air Over
Voltage
115V AC
Motor HP
1/3
Watts
300
Motor Insulation
Class B
Width
33-5/16 in.
General
Air Circulator Height
Adj 60 to 96 in.
Environmental Applications
Industrial
Air Velocity @ 10 Ft.
900/721/540 fpm
Fan Cord Length
15 ft
Air Velocity @ 20 Ft.
600/480/360 fpm
Fan Housing Material
Steel
Air Velocity @ 40 Ft.
350/279/209 fpm
Fan Mounting Location
Pedestal
Air Velocity @ 60 Ft.
200/160/120 fpm
Includes
Mounting Device and Mounting Bolts
Air Velocity @ 80 Ft.
150 fpm
Max. Ambient Temp.
105 Degrees F
Application
Spot Cooling and People Cooling
Wheeled Base
Stationary
Assembly Required
Yes
Wire Guard Finish
Nickel Chrome

Product Description

Standard-duty industrial pedestal fans cool heavy manufacturing areas and other dusty or dirty environments. Compared to light-duty industrial fans, these standard-duty fans are made of heavier-gauge materials, have a higher-horsepower motor that is totally enclosed to keep out debris, and feature more-robust motor bearings for a longer life.

Industrial pedestal fans have a heavy base and an adjustable-height post, so they can be placed on the floor and directed onto workspaces, machinery, or products. The pedestal base provides stable footing while allowing fans to be moved as needed. The post can be raised or lowered to set the fan head at an optimal height. These air circulators (sometimes called industrial shop fans) are commonly used for cooling in manufacturing plants, warehouses, and shipping operations. Made of heavy-gauge materials suitable for daily use, these axial fans have a powerful motor that drives the fan blades to move large volumes of air and feature high-performance bearings for a long life. A guard encloses the fan blades to help protect them from damage and prevent injuries from accidental contact.
