W F HARRIS LIGHTING

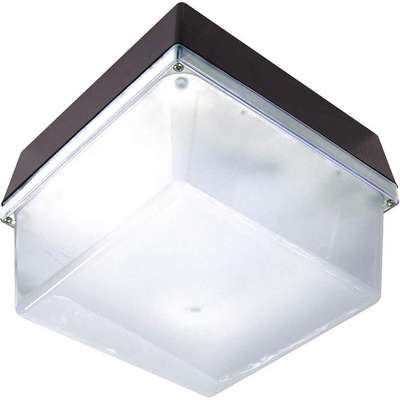

W F Harris Lighting Wall Pack: 4,000 K Color Temp, 4,000 lm, 45 W Fixture Watt, 120 to 277 V AC, 100W INC/23 to 26W CFL

Hover over image to magnify
LED Wall Fixture,45W,120V,4000L
LED Wall Fixture,45W,120V,4000L

#920345 | Pkg Qty: 1

$287.38 pkg | $287.38 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
W F HARRIS LIGHTING
Lumens
4000 lm
Color Temperature
4000 K
Mfr. Part Number
1200-4K-LED
Height
12 in.
Package Quantity
1
Housing Color
Bronze
Sensor Type
No Sensor Included
Housing Material
UV Stabilized Reinforced Polycarbonate
Shipping Weight
8.3 lb.
Item
Wall Pack
Voltage
120 to 277 VAC
Length
12 in.
Watts
44 W
Lens Material
UV Stabilized Polycarbonate
Width
8-3/4 in.
General
Fixture Housing Color
Bronze
Lighting Certification
DesignLights Consortium (DLC)
Fixture Housing Material
Polycarbonate
Lumens per Watt
90 lm/W
Fixture Lens Material
UV-Stabilized Polycarbonate
Max. Fixture Wattage
45
Fixture Lumens Range
2001 to 4000 lm
Max. Operating Temp.
104 Degrees F
Fixture Sensor Type
No Sensor Included
Min. Operating Temp.
-40 Degrees F
Fixture Voltage
120 to 277
Rated Life
100,000 hr
Fixture Wattage
45 W
Recommended Mounting Height
8 to 15 ft
Green Certification/Other Recognition
DesignLights Consortium (DLC)® Listed
Standards
UL 1598, UL 8750, CSA C22.2,
Includes
LEDs and Drivers
Wattage Range
41 to 100 W
LED Replacement For
100W INC; 23 to 26W CFL

Product Description

LED standard canopy lights project a bright, uniform light and reach full brightness instantly. They use LED lamps, which last longer and use significantly less energy than wall packs with other lamp types, such as high-pressure sodium or metal halide. They also produce very little heat and can withstand temperature changes and humidity. These ceiling-mounted lighting fixtures have a height of 5" or greater from the ceiling to the base of the fixture and are commonly used to retrofit existing canopy lights.

Standard canopy lights are outdoor lighting fixtures for use in building entrances with extended entryways or overhangs, such as gas stations, shopping areas, and office complexes. These ceiling-mounted fixtures have a height of 5" or greater from the ceiling to the base of the fixture. They project a downward beam of light to improve visibility and help enhance safety for pedestrians.

Item Barcode
9203450
LED Wall Fixture,45W,120V,4000L
 NameItemDescription
Grainger DropshipGrainger Dropship11K572LED Wall Fixture,45W,
UNSPSC CODESUNSPSC CODES39111503
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009LED Wall Fixture,45W,
