STANDARD XCHANGE

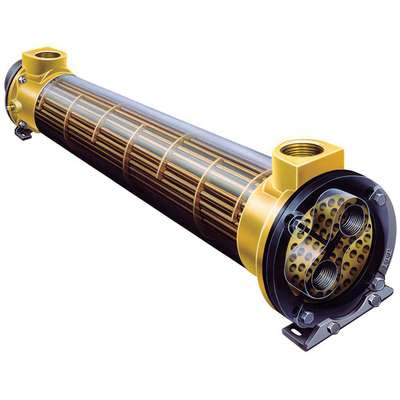

Standard Xchange Shell and Tube Heat Exchanger, Brass, Length 29.125", Width 7.75"

Hover over image to magnify
Heat Exchanger,1,350,000 Btu,
Heat Exchanger,1,350,000 Btu,

#920343-8 | Pkg Qty: 1

$3,133.52 pkg | $3,133.52 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
STANDARD XCHANGE
Mfr. Part Number
SN503006024005
Connection Type/Size
Shell 2 in. NPT, Tube 1 1/2 in. NPT
Package Quantity
1
Height
8-3/8 in.
Pressure
Shell 300 psig, Tube 150 psig
Item
Heat Exchanger
Product Weight
75 lb.
Length
29-1/8 in.
Shipping Weight
73 lb.
Material
Brass
Width
7-3/4 in.
General
Capacity (GPM)
Tube 57, Shell 73
Surface Area per Plate (Sq.-Ft.)
23 sq ft
Max. BtuH (Oil to Water Application)
134,000 BtuH
Temp. (F)
300
Max. BtuH (Water to Water Application)
1,350,000 BtuH

Product Description

Shell and Tube Heat Exchangers Brass

  • Max. working pressure: shell side 300 psi; tube side 150 psi Max. temp.: shell side 300°F; tube side 300°F
Item Barcode
9203438
Heat Exchanger,1,350,000 Btu,
