SOLA/HEVI-DUTY

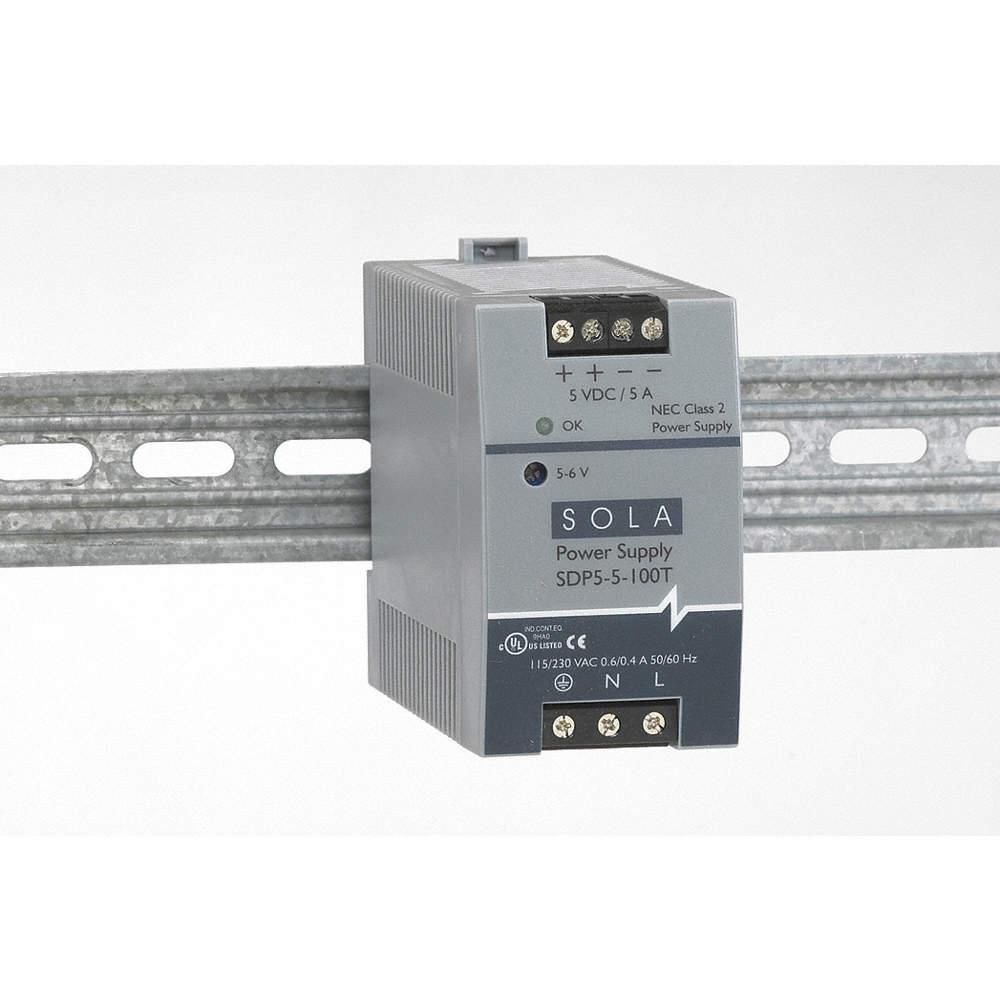

Sola/Hevi-Duty DC Power Supply, Style: Switching, Mounting: DIN Rail
Hover over image to magnify
#920334-5 | Pkg Qty: 1
$178.98 pkg | $178.98 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
5 A
Operating Temperature Range
-1 deg. C to 6 deg. C
Brand
SOLA/HEVI-DUTY
Output Amps
5
Case Material
Plastic Case
Output Noise
Less Than 50mV
Depth
3.58 in.
Output Voltage
5 to 6 VDC
Height
2.95 in.
Package Quantity
1
Hold Up Time
Greater Than 25 msec
Phase
1
Hz
47 to 63
Power Rating
100 W
IP Rating
20
Series
Sdp
Input Voltage
85 to 264 VAC
Shipping Weight
.7 lb.
Item
DC Power Supply
Status Indicator
Green DC OK Signal
Mfr. Part Number
SDP55100T
Style
Switching
Mounting
DIN Rail
Voltage Output
5-6VDC
Mounting Type
DIN Rail
Width
1.77 in.
NEMA Rating
1
General
Features
Ultra Slim 15W Footprint, No Tools Required For Mounting, Adjustable Output, PowerboostÖ Industrial Overload Design, Overvoltagea And Short Circuit Protection, Low Output Noise, Screw Terminal Connections
Phase - Electrical
Single
Operating Temp. Range
-10° to 60°C
Standards
cUL us E61379, cURus E137632 E234790, CE, Class 2 NFPA70
Product Description
SDP Series DC Power Supplies (DIN Mounted)
- Class 2 limited power source Adjustable output voltage Operating temp. range: -10° to 70°C Short-circuit protection Low output noise: 50mV p/p DC OK signal
- Easy-to-install units provide clean, stable DC power with a special industrial overload design that can start high inrush loads without oversizing. Compact and lightweight, with no derating necessary until above 60°C. DIN rail mount.
- Meet UL, C-UL, CE, and Class 2 NFPA 70, except No. 1GYK4 meets UL, C-UL, and CE standards.
Expertly Selected Product Pairings
Item Barcode
Dc Power Supply,5-6VDC,5A,47-
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4FB83 | DC Power Supply,5- |
 | UNSPSC CODES | 39121002 | |
 | VMRS (ATA) CODES | 053-006-009 | DC Power Supply,5- |
