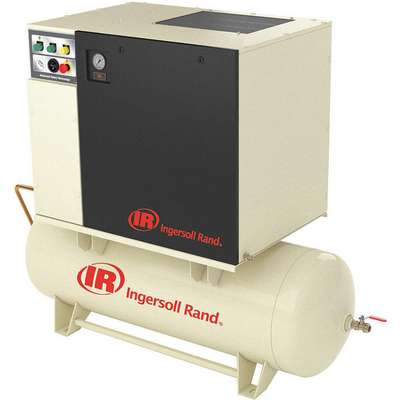

1-Phase 5 HP Rotary Screw Air Compressor w/Air Dryer with 80 gal. Tank Size

Name: 1-Phase 5 HP Rotary Screw Air Compressor w/Air Dryer with 80 gal. Tank Size
Brand: INGERSOLL RAND
SKU: 9202979
Price: 11937.36 USD
Availability: InStock

Hover over image to magnify

#920297-9 | Pkg Qty: 1

$11,937.36 pkg | $11,937.36 ea

This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications

(F)NPT Outlet

3/4 in.

Mfr. Part Number

UP6-5TAS-150/80-230-1

Air Consumption

scfm

Overall Depth

29 in.

Amps AC

34.1

Overall Height

57 in.

Brand

INGERSOLL RAND

Overall Length

71 in.

Delivery

Package Quantity

Depth

29 in.

Phase

Duty

Continuous

Series

Up6 Tas

Free Air CFM @ Max Pressure

12.9

Shipping Weight

1021 lb.

Full Load Amps

23-1/2

Tank Size

80 gal.

Horsepower

Tank Style

Horizontal

Input Voltage

230 VAC

Tank Type

Horizontal

Item

Rotary Screw Air Compressor w/Air Dryer

Type

Integrated Air Dryer

Maximum Pressure

150 psi

Voltage

230

General

ASME Tank

Yes

Maintenance Kit Number

4VE84

Air Dryer

Included

Max. Pressure - Air Compressor

150 psi

Air Tank Size

80 gal

Outlet Gender

Female

Air Tank Style

Horizontal

Output Power

5 hp

Delivery (CFM)

Phase - Electrical

Free Air CFM @ Max. Pressure

12.9

Receiver

80 gal.

Free Air CFM @ Max. Pressure - Air Compressor

12.9

Refrigerant

R-134a

Free Air Flow Rate @ Maximum Pressure

16 cfm

Sound Level Range

Quiet (less than 70 dBA)

Tank Size - Air Compressor

80 gal

HP - Air Compressor

5.0 hp

Tank Style - Air Compressor

Horizontal

Input Voltage - Air Compressor

230V AC

dBA @ 3 Feet

Product Description

Integrated compressor and dryer system provides clean, dry air. Each horizontal tank-mounted unit includes a rotary screw compressor, refrigerated air dryer, moisture separator, coalescing and particulate filtration, receiver tank, and controls.
