SQUARE D

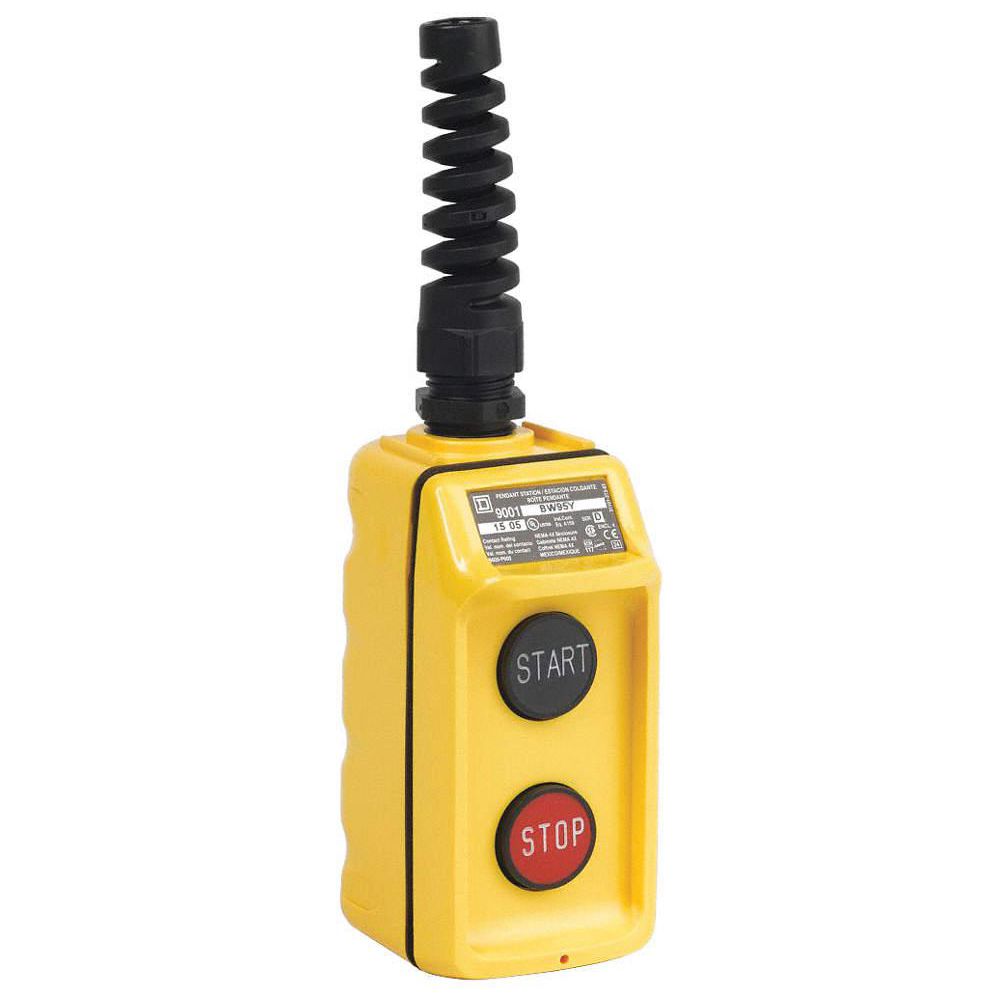

Square D 2-Button Start/Stop Pendant Push Button Station, 1NO/1NC, NEMA Rating 1, 3, 3R, 4, 4X, Yellow

Hover over image to magnify
Pendant Push Button Station,No/
Pendant Push Button Station,No/
Double tap image to magnify
Pendant Push Button Station,No/
Pendant Push Button Station,No/

#920296-1Pkg Qty: 1

$148.24 pkg | $148.24 ea

In Stock

Shipping to 43085
Expected to arrive Mon. Apr 07.
|

Technical Specifications

Key Specifications
Action
Momentary
Legend Markings
Start/Stop
Amperage
5 A
Length
4.69 in.
Amps
1899-12-31 05:00:00
Material of Construction
Polycarbonate / PET Polyester Blend
Brand
SQUARE D
Mechanical Interlock
No
Color Family
Yellow
Mfr. Part Number
9001BW95Y
Contact Form
1NO/1NC
Mounting
Hand Grip
Contact Rating
5 A @ 600 VAC/DC
NEMA Contact Rating Designation
B600/P600
Contact Type
1NO/1NC
NEMA Rating
1, 3, 3R, 4, 4X
Depth
2.94 in.
Number of Operators
2
Height
4.69 in.
Package Quantity
1
Housing Color
Yellow
Shipping Weight
.7 lb.
Housing Material
Polycarbonate/PET Polyester Blend
Type
Preassembled, with Strain Relief
Hub
1/2 in.-14 NPT
Type of Operator
Push Button
Item
Pendant Push Button Station
Voltage
600 VAC/DC
Legend
Start/Stop
Width
2.19 in.
General
Includes
Cable Size Range from .236 in to .472 in
Standards
UL, CSA, CE

Product Description

Push-Button Pendant Station is already assembled. NEMA rated 1, 3, 3R, 4, 4X, and 13. Includes strain relief.
