DAYTON

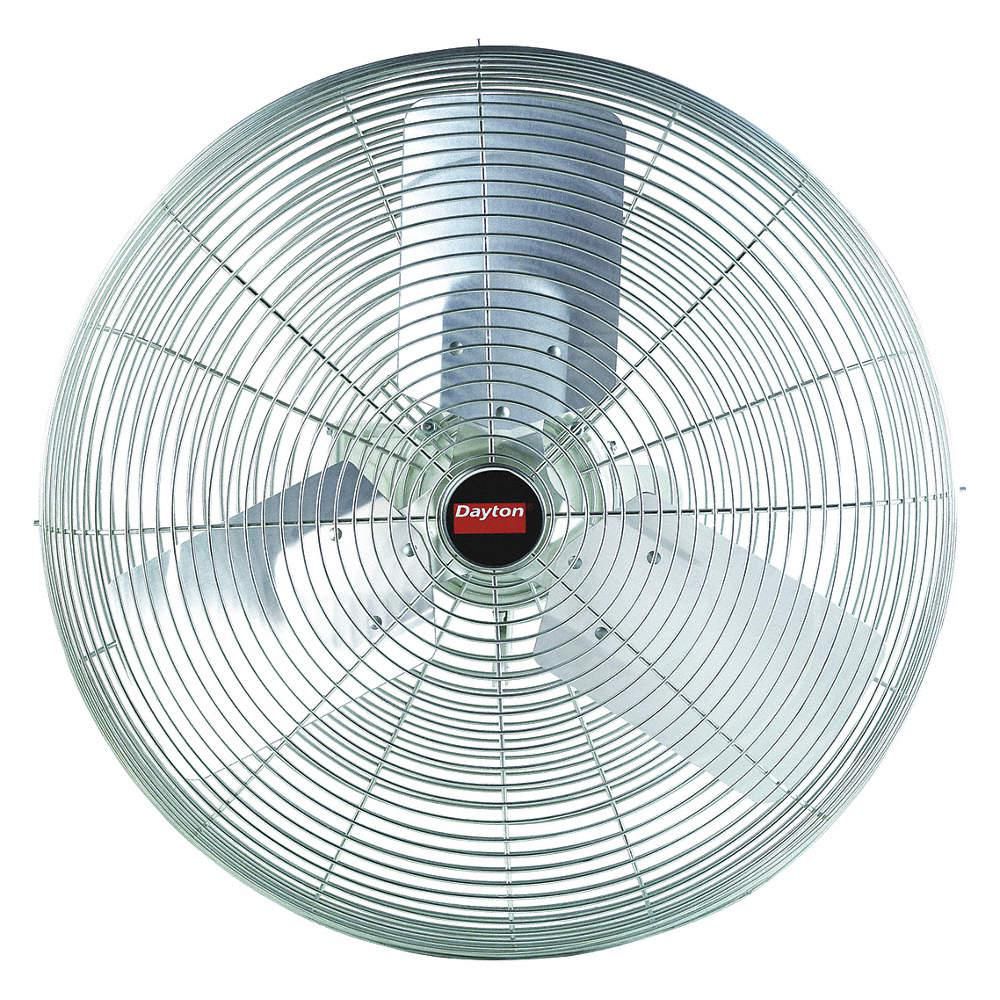

Dayton Industrial Painted Washdown Fan: Industrial Painted Washdown Fan, 30 in Blade Dia, 10,050 cfm

Hover over image to magnify
Washdown Aircirc,30in,10,
Washdown Aircirc,30in,10,

#920293-5 | Pkg Qty: 1

$400.26 pkg | $400.26 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Air Flow
10,050 cfm
Motor Type
Permanent Split Capacitor
Assembled/Unassembled
Yes
Mounting Location
Wall
Bearing Type
Ball
NEMA Plug Configuration
Hardwired
Blade Diameter
30 in.
Number of Blades
3
Blade Material
Aluminum
Oscillating
No
Brand
DAYTON
Outside Diameter
33 in.
Drive Type
Direct
Package Quantity
1
Guard Material
Steel
Phase
1
Hz
60 Hz
Shaft Diameter
5/8 in.
Item
Industrial Fan
Shipping Weight
71 lb.
Mfr. Part Number
1VCG2
Sound Level
77 dBA
Mobile/Stationary
Stationary
Standards
cULus Listed
Motor Enclosure
Totally Enclosed Air Over
Thermal Protection
Automatic
Motor HP
1/2
Voltage
115/230V AC
Motor Insulation
Class F
Watts
525
Motor RPM
1100
Width
33 in.
General
Air Circulator Height
34-3/8 in.
Fan Cord Length
No Cord
Air Velocity @ 10 Ft.
1275 fpm
Fan Housing Material
Steel
Air Velocity @ 20 Ft.
800 fpm
Fan Mounting Location
Wall
Air Velocity @ 40 Ft.
310 fpm
Includes
Conduit Box, Mounting Bolts, Mounting Device, Secondary Safety Support Cable
Air Velocity @ 60 Ft.
180 fpm
Max. Ambient Temp.
104 Degrees F
Application
Spot Cooling for Food and Beverage Processing Plants
Wheeled Base
Stationary
Environmental Applications
Industrial
Wire Guard Finish
Zinc Plated

Product Description

Industrial wall-mount washdown fans can be hosed off or pressure washed during cleaning in areas that require regular washdowns. They're commonly used for keeping workers, machinery, and products cool in food-processing plants and other washdown areas where floor space is limited. These air circulators have a totally enclosed motor to keep out water and debris.

Industrial wall-mount fans attach to a wall, ceiling, or beam so they won't take up floor space, block traffic flow, or create a tripping hazard. These air circulators are often used for cooling people, machinery, and products in aisles, tight spaces, and busy areas of manufacturing plants, warehouses, and shipping operations. Made of heavy-gauge materials suitable for daily use, these axial fans have a powerful motor that drives the fan blades to move large volumes of air and feature high-performance bearings for a long life. A guard encloses the fan blades to help protect them from damage and prevent injuries from accidental contact.
