LEGRIS

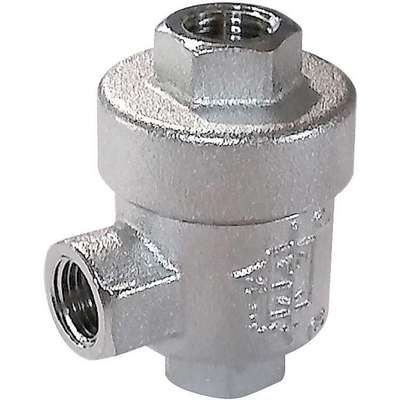

Quick Exhaust Valve: 1/2 in Port Size , 150 psi Max. Op PSI
Hover over image to magnify
#920268-7 | Pkg Qty: 1
$44.17 pkg | $44.17 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Air Consumption
scfm
Package Quantity
1
Brand
LEGRIS
Pipe Size
1/2 in.
Item
Quick Exhaust Valve
Port Size
1/2 in.
Material of Construction
Nickel Plated Brass
Pressure Range
10 To 150
Maximum Operating PSI
150
Shipping Weight
.7 lb.
Maximum Temperature
160 deg. F
Type
NPT x Tube
Mfr. Part Number
7982 22 22
General
Air Inlet
1/2 in NPT
Inlet Gender
Female
Air Inlet Type
NPT
Inlet Size
1/2 in
Air Outlet
1/2 in NPT
Maximum Operating Pressure
150 psi
Air Outlet Gender
Female
Maximum Operating Temperature
160 Degrees F
Air Outlet Size
1/2 in
Minimum Operating Pressure
10 psi
Air Outlet Type
NPT
Minimum Operating Temperature
0 Degrees F
Body Material
Brass
Overall Height
2 13/16 in
Body Material Finish
Nickel Plated
Overall Length
9/16 in
Product Description
Legris® quick exhaust valve helps increase your system's efficiency and the cylinder speed by purging cylinder exhaust air at the cylinder port instead of at the control valve. Suitable for use in most pneumatic equipment. Nickel plated brass construction. For use with polyurethane, polyethylene, or PTFE tubing.
