SPEEDAIRE
Portable Gas Air Compressor: 2 Stage, 9 hp Engine, Honda, 18.3 cfm @ 90 psi, Horizontal
#920265-4 | Pkg Qty: 1
$2,512.75 pkg | $2,512.75 ea
This item requires special shipping, additional charges may apply.
Drop Ship Item
Shipping to 60045
Required Items
Items below are required. They are not included and need to be ordered separately.
Technical Specifications
Key Specifications
(F)NPT Outlet
3/8 in.
Overall Length
46 in.
Air Consumption
scfm
Overall Width
26 in.
Average Pump Life
2000 hr.
Package Quantity
1
Brand
SPEEDAIRE
Pump RPM
864
Engine Brand
Honda OHV GX Gas with Low Oil Shutoff
Pump Type
Cast Iron Oil Lubricated
Free Air CFM @ 90 PSI
18.3
RPM
985
Free Air CFM @ Max Pressure
17-1/2
Shipping Weight
369 lb.
Horsepower
9
Style
Barrel
Item
Portable Gas Air Compressor
Tank Size
20 gal.
Lubrication Type
Splash Lubricated
Tank Style
Horizontal
Maximum Pressure
175 psi
Tank Type
Horizontal
Mfr. Part Number
AS2-PH08-20G
Type
Barrel
Number of Stages
2
Width
26 in.
Overall Height
41-1/2 in.
General
Air Tank Size
20 gal
Fuel Type - Engine
Gasoline
Air Tank Style
Horizontal
HP
9.0
Avg Pump Life
2,000 hr
Includes
(2) Gauges, Regulator
Avg. Pump Life
2,000 hr
Lubrication Type - Air compressor
Splash Lubricated
Engine HP - Air Compressor
9.0 hp
Max. Pressure - Air Compressor
175 psi
Engine Oil Capacity
37 oz
Number of Stages - Air Compressor
2
Engine Output Power
9 hp
Outlet Gender
Female
Engine Starter
Recoil
Pump Oil Capacity
24.7 oz
Free Air CFM @ 90 PSI - Air Compressor
18.3
Sound Level Range
Standard (70 dBA or more)
Free Air CFM @ Max. Pressure - Air Compressor
17.5
Tank Size - Air Compressor
20 gal
Free Air Flow Rate
18.3 cfm
Tank Style - Air Compressor
Horizontal
Free Air Flow Rate @ Maximum Pressure
17.5 cfm
Product Description

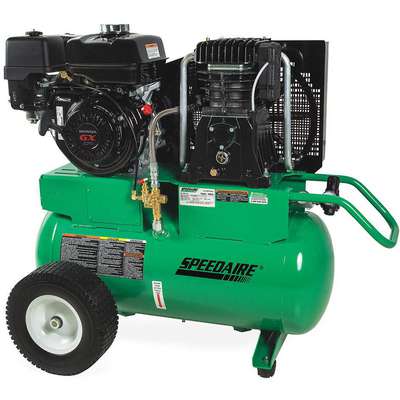

The SPEEDAIRE® portable gas air compressor features a 20-gal. ASME-coded tank, two-stage splash-lubricated compressor pump with cast-iron cylinders, and a Honda engine with recoil start. Includes regulator and two gauges for tank and outlet pressure. Heavy-duty brass plate and 14-ga. belt guard to reduce vibration.
