SPEEDAIRE

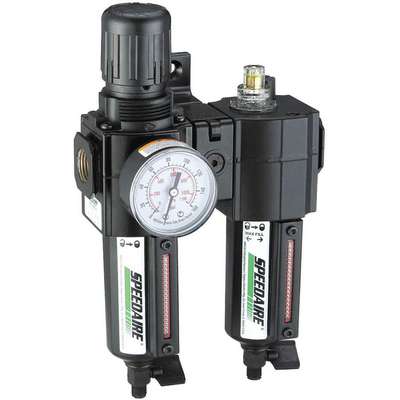

3/8" NPT Filter/Regulator/Lubricator with 5 to 150 psi Adjustment Range
Hover over image to magnify
#920241-2 | Pkg Qty: 1
$157.62 pkg | $157.62 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Adjustment
5 to 150 psi
Maximum Temperature (Deg. F)
175
Air Consumption
scfm
Mfr. Part Number
7D708
Bowl Material
Metal with Sight Glass
NPT
3/8 in.
Brand
SPEEDAIRE
Number of Pieces
2
Drain Type
Manual
Overall Height
9.95 in.
Filter Rating
5 micron
Overall Width
5.91 in.
Item
Filter/Regulator/Lubricator
Package Quantity
1
Maximum Flow
60 cfm
Pipe Size
3/8 in. NPT
Maximum Flow (CFM)
60 CFM
Shipping Weight
4.27 lb.
Maximum Pressure
250 psi
Type
2 Piece Modular Combination
Maximum Temperature
175 deg. F
Width
5.91 in.
General
Adjustment Range
5 to 150 psi
For Substance Type
Air
Adjustment Range - Air Treatment
5 to 150 psi
Includes
Mounting Brackets, Pressure Gauge, Sight Glass
Air Inlet Type
NPT
Lubricator Bowl Capacity
3.5 oz
Air Outlet Size
3/8 in
Lubricator Bowl Material
Metal
Air Outlet Type
NPT
Lubricator Type
Mist
Bowl Material - Air Treatment
Metal with Sight Glass
Lubricator Type Included
Mist
Bowl Size - Air Treatment
3.5 oz
Max. Flow - Air Treatment
60 cfm
Connection Size - Air Treatment
3/8 in NPT
Max. Flow Range - Air Treatment
51 to 60 cfm
Filter Bowl Capacity
3.5 oz
Max. Incoming Pressure - Air Treatment
250 psi
Filter Bowl Material
Metal
Maximum Regulated Pressure
150 psi
Filter Rating - Air Treatment
5 micron
Minimum Regulated Pressure
5 psi
For Fluid Type
Air
Product Description
This 2-pc. unit combines filter/regulator with a Mist lubricator. Modular connector allows easy removal and swap out. For filter/regulator, the CFM flow is measured with 90 psig inlet adjusted to a set pressure of 90 psig (while increasing flow) and a 15 psig drop. For lubricator, the CFM is based on 90 psig inlet and 5 psig pressure drop.
Expertly Selected Product Pairings
Item Barcode
Frl,3/8 In. NPT,60 Cfm,250 PSI
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 7D708 | FRL,3/8 In. NPT,60 cfm, |
 | UNSPSC CODES | 27131604 | |
 | VMRS (ATA) CODES | 053-008-004 | FRL,3/8 In. NPT,60 cfm, |
