DAYTON

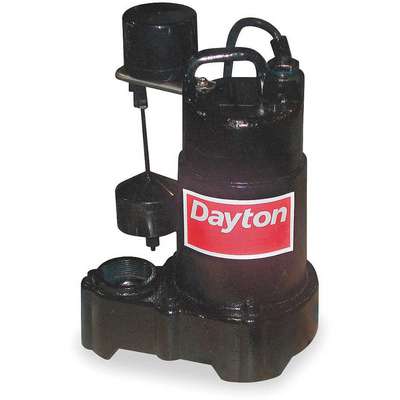

1/2 HP Submersible Sump Pump, Vertical Switch Type, Cast Iron Base Material

Hover over image to magnify
Sump Pump,1/2 Hp,1-1/2" NPT,10
PI_Asset_948153
PI_Asset_948154
Sump Pump,1/2 Hp,1-1/2" NPT,10
PI_Asset_948153
PI_Asset_948154

#920200-1 | Pkg Qty: 1

$296.26 pkg | $296.26 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Alarm
No
Maximum Diameter Solids
1/2 in.
Alarm Included
No
Maximum Head
30 ft.
Amps
6.8 A
Maximum Liquid Temperature
104°F
Base Material
Cast Iron
Maximum Temperature (Deg. F)
104
Bearing Type
Upper and Lower Ball
Mechanical Seal
SiC
Brand
DAYTON
Mfr. Part Number
3BB71
Cord Length
10 ft.
Motor Type
Oil-Cooled
Diameter
9-1/8 in.
NEC Cord Designation
SJTOW
Discharge NPT
1-1/2 in. F
Off Point
3 in.
Duty
Continuous
On Point
7-1/4 in.
GPM of Water @ 10 Ft. of Head
57
Package Quantity
1
GPM of Water @ 15 Ft. of Head
45
Pump Body Material
Cast Iron
GPM of Water @ 20 Ft. of Head
30
Pump HP
1/2
GPM of Water @ 25 Ft. of Head
15
Pump Type
Automatic
GPM of Water @ 5 Ft. of Head
65
Shaft Material
Stainless Steel
Gauge/Conductor
18/3
Shaft Seal
Silicon Carbide
Height
11-3/4 in.
Shaft Seal Material
Carbon Ceramic
Horsepower
1/2
Shipping Weight
29.15 lb.
Housing
Cast Iron
Sump Pump Item
Submersible Sump Pump
Housing Material
Cast Iron
Switch Type
Vertical
Hz
60
Top Material
Cast Iron
Impeller Material
Cast Iron
Type
Automatic
Item
Submersible Sump Pump
Voltage
120 VAC
General
Body Dia.
9 1/8 in
Flow Rate @ 5 Ft. of Head
65 gpm
Discharge Dia.
1 1/2 in
Nominal Voltage
110 V AC
Discharge Gender
Female
Rated Voltage
120V AC
Discharge Standard
NPT
Shaft Seal Material - Pumps
Carbon Ceramic
Flow Rate @ 10 Ft. of Head
57 gpm
Switch Actuation
Vertical Float
Flow Rate @ 15 Ft. of Head
45 gpm
Switch Electrical Connection
Piggyback
Flow Rate @ 20 Ft. of Head
30 gpm

Product Description

These 110V submersible sump pumps have a cast-iron body that helps dissipate heat as the pump drains water from sump pits. They are compatible with most standard U.S. residential electrical wall outlets and have a Type A (two prongs, ungrounded) or Type B (three prongs, grounded) power cord plug. Pumps have a painted or powder-coated finish to protect the body from corrosion.
