THOMAS & BETTS

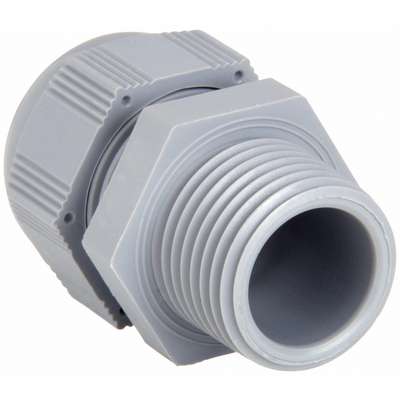

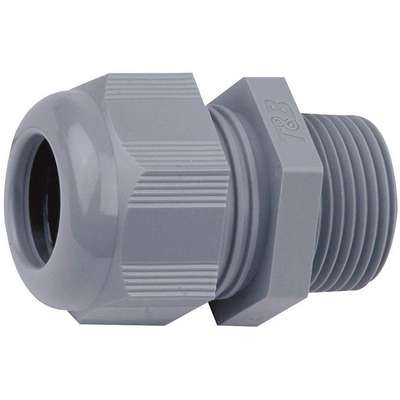

Thomas & Betts Liquid Tight Cord Connector, 0.23" to 0.29" Cord Dia. Range, 3/4" MNPT, Nylon
Hover over image to magnify
#920152 | Pkg Qty: 1
$12.18 pkg | $12.18 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body Color
Gray
Material
Nylon
Body Material
Nylon
Material of Construction
Nylon
Box Connection
3/4 in. MNPT
Maximum Operating Temperature
176 deg. F
Brand
THOMAS & BETTS
Mesh Length
No Strain Relief Mesh
Collar Material
Nylon
Mesh Material
No Strain Relief Mesh
Color Family
Gray
Mfr. Part Number
CC-NPT-34-G-2
Conduit Size
3/4 in.
Minimum Operating Temperature
-22 deg. F
Connector Type
Straight
Number of Cords
2
Cord Diameter Range
0.23 in. to 0.29 in.
Operating Temperature
-22 F to 176 F
Gland Color Code
No Code
Package Quantity
1
Hazardous Location Rating
Not Rated
Shipping Weight
.07 lb.
Hub Size
3/4 in.
Thread Size
3/4 in.
Insulated
Yes
Thread Type
NPT
Item
Liquid Tight Cord Connector
Type
Liquid Tight
Length
1-63/64 in.
General
Compatible Conduit Trade Size
3/4 in
Length - Box to End of Connector
1 1/4 in
Compatible Conduit Type
Liquid Tight Cord Connector
Liquid Tight
Yes
Connection Orientation
Straight
Resistance Properties
Corrosion Resistant
External Strain Relief Length
No External Strain Relief
Standards
UL, CSA, UL94V0, Rated IP68 and NEMA 4
For Maximum Cable OD
0.29 in
Strain Relief Type
No External Strain Relief
For Minimum Cable OD
0.23 in
Style - Connector
Straight
For Use With
Cable Gland Connector
Thread Gender
Male
Product Description
The Thomas & Betts® nylon liquid-tight cord connector is ideal in limited-space environments where multiple cables run into an enclosure. Fittings are liquid-tight, easy to assemble, provide good strain relief, offer a wide clamping range, and simple to use. Nylon 6 construction provides excellent corrosion, chemical, and impact resistance.
