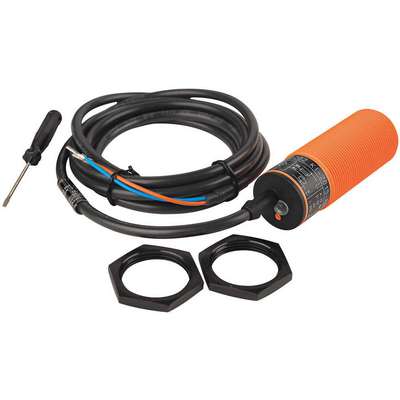

IFM 40 Hz Capacitive Cylindrical Proximity Sensor with Max. Detecting Distance 15.0mm
Hover over image to magnify
#920151-9 | Pkg Qty: 1
$150.26 pkg | $150.26 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Basic Material
Plastic
NEMA Type
IP67
Basic Proximity Sensor Case Material
Plastic
Operating Frequency
40 Hz
Brand
IFM
Operating Temperature Range
-1 deg. F to 158 deg. F
Case Material
PBT
Output Mode
NO/NC
Circuit Type
3 Wire PNP
Package Quantity
1
Connector Type
2m Cable
Power Requirement
10 to 36VDC
Description/Special Features
Red LED Output Indication, Overload Protection
Proximity Sensing Method
Capacitive
Detecting Distance
15mm
Proximity Sensor Diameter
30.0 mm
Diameter
30 mm
Proximity Sensor Operating Frequency
40 Hz
Electrical Connection
2m Cable
Proximity Sensor Output Circuit Type
3 Wire PNP
IP Rating
65
Proximity Sensor Power Requirement
10 to 36 VDC
Item
Cylindrical Proximity Sensor
Proximity Sensor Style
Cylindrical Proximity Sensor
Length
99 mm
Proximity Sensor/Switch Electrical Connection
2m Cable
Material of Construction
PBT
Sensing Method
Capacitive
Maximum Current Load
250mA
Shielded/Unshielded
Unshielded
Maximum Detecting Distance
15 mm
Shipping Weight
.4 lb.
Maximum Load
250 lb.
Voltage Range
10-36 VDC
Mfr. Part Number
KI5207
General
Includes
(2) Lock Nuts
Special Features
Red LED Output Indication, Overload Protection
Proximity Sensor Electrical Connection
2m Cable
Standards
cCE Compliance
Shielded / Unshielded
Unshielded
Product Description
This capacitive proximity sensor is designed to monitor levels of liquids and dry bulk material in nonmetallic tanks. It does not require contact with the medium being monitored.
