CLEVELAND

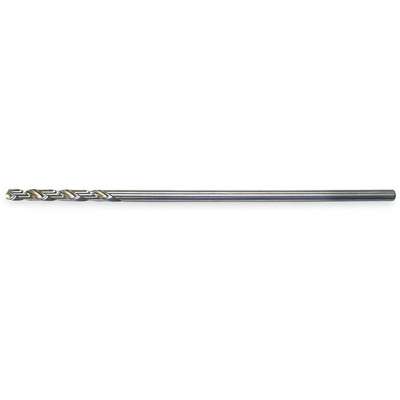

Extra Long Jobber Length Drill Bit, Drill Bit Size 3/8", Overall Length 12", High Speed Steel

Hover over image to magnify
Extension Drill,Aircraft,3/
Extension Drill,Aircraft,3/
Extra Long Jobber Length Drill Bit, Drill Bit Size 3/8", Overall Length 12", High Speed Steel Video

#920095-4 | Pkg Qty: 1

$37.39 pkg | $37.39 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
CLEVELAND
Item
Extra Long Drill Bit
Coolant Through
Non-Coolant Through
List Number
3957
Cutting Direction
Right
Maximum Drilling Depth
1-1/2 in.
Decimal Equivalent
3/8
Meets/Exceeds
National Aerospace Standards (NAS) 907, Type B
Depth x Diameter Ratio
5xD
Mfr. Part Number
C13196
Dimension Type
Fractional Inch
Number of Flutes
2
Drill Bit Dimension Type
Fractional Inch
Number of Pieces
1
Drill Bit Finish
Bright (Uncoated)
Overall Length
12 in.
Drill Bit Material
High Speed Steel
Package Quantity
1
Drill Bit Point Angle
135 deg.
Point Angle
135 deg.
Drill Bit Size
3/8 in.
Point Type
Split Point
Drill Point Length
0.0777 in.
Series
3957-12
Finish
Bright
Shank Diameter
3/8 in.
Flute Length
3-5/8 in.
Shank Length
8-3/8 in.
Flute Type
Spiral
Shipping Weight
.3 lb.
Grade
Heavy Duty
Spiral Direction
Right Hand
Helix Angle
21 to 34
General
Aircraft Drill
Yes
Material - Machining
High Speed Steel
Application
For Alloy Steel, Carbon Steel And Cast Iron
Material Grade - Machining
High Performance
Coolant Fed
Non-Coolant Through
Measurement System
Fractional Inch
Depth:Dia. Ratio
4xD
Primary Material Application ISO Code
N, P
Drill Bit Grouping
Individual
Secondary Material Application
Cast Iron, Stainless Steel
Drill Bit Point Type
Split Point
Secondary Material Application ISO Code
K, M
Drill Diameter Tolerance
+0.0000 in /-0.0010 in
Shank Dia.
3/8 in
Drill Length Class
Extra Long
Shank Type - Machining
Straight
Finish - Machining
Bright (Uncoated)
Standards
National Aerospace Standards (NAS) 907, Type B

Product Description

These extended-length drill bits meet National Aerospace Standards (NAS) 907 Type B for drill bits used in aircraft repair and production. The bits have a bright finish that is not affected when their cutting edges are resharpened. Spiral-flute drill bits evacuate chips as the bits drill into a workpiece. These bits do not have coolant holes, so a separate hose is required to bring coolant to the bits' tip if it is needed.
