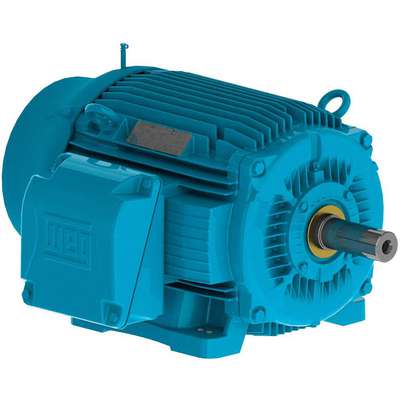

WEG IEEE 841 Motor, 10 HP, 3-Phase, Nameplate RPM 1,765, Voltage 460V AC, 215T Frame, CW/CCW

Name: WEG IEEE 841 Motor, 10 HP, 3-Phase, Nameplate RPM 1,765, Voltage 460V AC, 215T Frame, CW/CCW
Brand: WEG
SKU: 9200928
Price: 2328.89 USD
Availability: InStock

Hover over image to magnify

Double tap image to magnify

#920092-8Pkg Qty: 1

$2,328.89 pkg | $2,328.89 ea

This item requires special shipping, additional charges may apply.

In Stock

Shipping to 43085

Expected to arrive Tue. Mar 18.

Technical Specifications

Key Specifications

Base

Rigid

Motor Type

3-Phase

Bearings

Ball

Mounting

Rigid Base

Brand

WEG

Mounting Position

All Angle

Duty

Continuous

NEMA/IEC Frame

215T

Duty Cycle

Continuous

Nameplate RPM

1765

Enclosure

Totally Enclosed Fan-Cooled

Overall Length

19-9/16 in.

Frame

215T

Package Quantity

Frame Material

Cast Iron

Phase

Three

Full Load Amps

12.4

Rotation

CW/CCW

Service Factor

1-1/4

Insulation Class

Shaft Length

3-3/8 in.

Item

IEEE 841 Motor

Shaft Type

Keyed

Length Less Shaft

16-3/16 in.

Shipping Weight

186 lb.

Mfr. Part Number

01018ST3QIE215T-W22

Thermal Protection

None

Mfr. Warranty Length

3 yr.

Uses

Pulp, Paper and Steel Mills, Petrochemical and Other Dusty, Dirty Applications Requiring Severe Duty Long-Life Motors

Motor Design

3-Phase

Voltage

460 VAC

General

CC Number

CC029A

No. of Speeds

Complies With

UL, CSA, CE, NOM

Nominal Efficiency

91.7 %

Efficiency Group

NEMA Premium Efficient

RPM @ 50Hz

1,450

Full Load Amps @ 50Hz

10.9, 11.0, 11.2, 13.8, 14.2, 15.0

RPM Group

1701-1800

Green Certification or Other Recognition

NEMA Premium® Rated

RPM Range

1,701-1,800

Service Factor @ 50Hz

1.15

HP @ 50Hz

7 1/2, 10

Shaft Dia.

1 3/8 in

Inverter Rated

Yes

Standards

CE, CSA, NOM, UL

Max. Ambient Temp.

40 °C

Voltage @ 50Hz

380V AC, 400V AC, 415V AC

Motor Application

IEEE Motor

Voltage Compatibility

200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC

Motor Efficiency Group

NEMA Premium Efficient

Product Description

NEMA 210 frame IEEE 841 motors have a shaft whose center is 5-1/4" above the mounting surface. They have standard NEMA 210 frame construction with standard dimensions that allow drop-in replacement of motors from multiple suppliers with no modifications required to existing installations
