LEGRIS

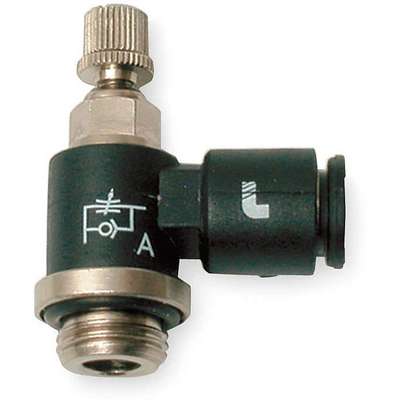

Flow Control Valve, 5/32" Push To Connect Valve Inlet Port, 145 psi, Directions Controlled : 1
Hover over image to magnify
#920063-3 | Pkg Qty: 1
$29.29 pkg | $29.29 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Air Consumption
scfm
Package Quantity
1
Brand
LEGRIS
Pipe Size
10-32
Connection
Tube x UNF
Pressure Range
14.5 to 145 PSI
Directions Controlled
1
Shipping Weight
.15 lb.
Hex Size
6 mm
Tube Size
4 mm
Item
Flow Control Valve
Type
Miniature
Material of Construction
Glass Filled Nylon And Nickel Plated Brass
Valve Inlet Port
5/32 in. Push To Connect
Maximum Temperature
158 deg. F
Valve Maximum Pressure Rating
145 psi
Mfr. Part Number
7660 04 20
Valve Outlet Port
10-32 UNF
General
Pneumatic Valves Product Group
Flow Control Valve
Product Description
Legris® flow control regulator is specially designed for use with small-bore cylinders in very small pneumatic applications. Glass filled nylon and nickel plated brass construction. For use with polyurethane, polyethylene, or PTFE tubing.
Expertly Selected Product Pairings
Documents
Item Barcode
Flowcntrl Regulator,Mini,4mm,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 1PFY6 | FlowCntrl Regulator, |
 | UNSPSC CODES | 40141609 | |
 | VMRS (ATA) CODES | 053-006-009 | FlowCntrl Regulator, |
