Home All Products Pipe, Tubing & Fittings Tubing PTFE Tubing SKU: 920009-4
Share
Print
ATP

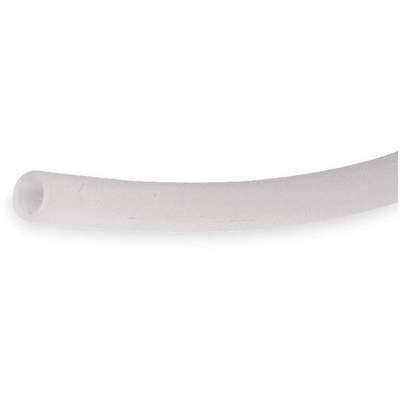

Tubing: PTFE, Natural, 1/8 in Inside Dia, 1/4 in Outside Dia, 100 ft Overall Lg, Grainger Approved

Hover over image to magnify
Tubing,0.125 IDx1/4 In Od,100
Tubing,0.125 IDx1/4 In Od,100

#920009-4 | Pkg Qty: 1

$440.61 pkg | $440.61 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Bend Radius
3/4 in.
Package Quantity
1
Brand
ATP
Shipping Weight
3.35 lb.
Hardness
Shore D: 55 to 65
Tensile Strength
3000 psi
Inside Diameter
1/8 in.
Tube Color
Natural
Item
Tubing
Tube Length
100 ft.
Mfr. Part Number
PTFE-0204X100
Tube Material
PTFE
Outside Diameter
1/4 in.
General
Elongation
200 to 400%
Temp. Range
-400 Degrees to 500 Degrees F
Max. Working Pressure @ 73 F
375 psi
Tube Hardness
Shore D: 55 to 65
Standards
FDA Approved, CFR Title 21, ASTM 3295, UL94 Rated V-O Flammability

Product Description

PTFE Tubing features a low friction coefficient that allows higher flows and easier washdown, while also helping to eliminate process-contaminating residue. The material is flexible, chemical resistant, nonflammable, and heat resistant. It also features a high dielectric strength and is inert to most chemicals and solvents. It is suitable for use in industrial, chemical processing, general laboratory, automotive, insulation, and food service applications.
