Weld Nut: #10-24 Thread, Tab, 1/32 in Base Ht, 3/8 in Base Wd, 5/8 in Base Lg, Steel, 50 PK
Hover over image to magnify
#919996-2 | Pkg Qty: 50
$13.73 pkg | $0.27 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Base Length
5/8 in.
Package Quantity
50
Base Thickness
3/32 in.
Pilot Diameter
15/64 in.
Base Width
3/8 in.
Pilot Height
0.032 in.
Basic Material
Steel
Pilot Hole Size
1/4 in.
Brand
APPROVED SUPPLIER
Projection Height
0.012 in.
Fastener Finish
Plain
Projection Width
0.094 in.
Fastener Thread Direction
Right Hand
Shipping Weight
.3 lb.
Fastener Thread Type
UNC (Coarse)
System of Measurement
Fractional
Finish
Plain
Thread Direction
Right
Item
Weld Nut
Thread Size
#10-24
Material
Steel
Thread Type
Coarse
Mfr. Part Number
1LAJ3
Type
Tab Base with Projections
Nut Style
Tab Base Weld Nut with Projections
Weld Projections
2
General
Application
Projections At Opposite Ends Provide Equivalent Strength When Tension Is Applied Against Weld
For Hole Diameter
1/4 in
Base Shape
Tab
Hole Location
Center
Collar Diameter
0.094 in
Number of Weld Projections
2
Collar Height
0.012 in
Product Description

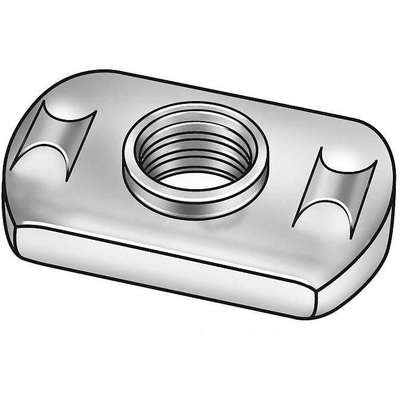

Tab Base Weld Nuts
- Nuts with offset hole have a single projection and can be used to reinforce or brace an area, while nuts with a center hole have multiple projections and provide the greatest weld strength.
- Hex Base Weld Nuts
- Pkg. of 50
- Allow rapid installation into holes prior to welding. Steel material.
Expertly Selected Product Pairings
Item Barcode
Weld Nut,10-24,5/8 x 3/8 In,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 1LAJ3 | Weld Nut,10- 24,5/8 x 3/8 |
 | UNSPSC CODES | 31161731 | |
 | VMRS (ATA) CODES | 053-006-009 | Weld Nut,10- 24,5/8 x 3/8 |
