MITUTOYO

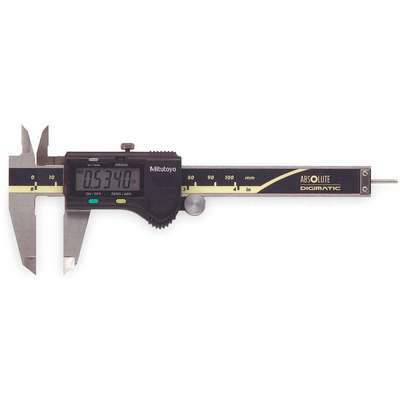

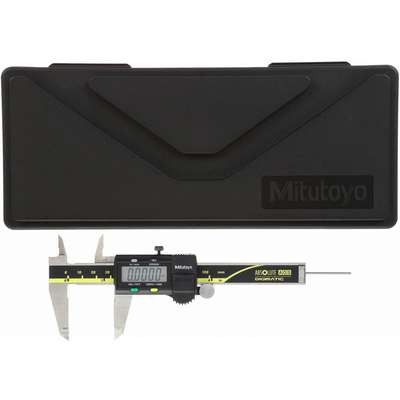

Mitutoyo Digital Caliper 0-4"/0-100mm Range, 0.0005"/0.01mm Resolution, Stainless Steel
Hover over image to magnify
#919950-7 | Pkg Qty: 1
$175.88 pkg | $175.88 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Absolute Positioning
Yes
Item
Digital Caliper
Accuracy
±0.001 in./0.025mm
Material
Stainless Steel
Brand
MITUTOYO
Mfr. Part Number
500-195-30
Calibration Certificate
No
Package Quantity
1
Caliper Material
Stainless Steel
Range
0-4 in./0-100 mm
Caliper Range
0-4 in./0-100mm
Resolution
0.0005 in./0.01mm
Characteristics
Rolling Thumb Wheel, Control Buttons on Face, Zero, On/Off and Inch/mm, Absolute Scales
SPC Output
No
Display
Large LCD
Shipping Weight
.87 lb.
IP Rating
Not Rated
General
Application
Remembers the Measuring Position Even After Gauge Switched Off
Jaw Shape
Standard
Battery Size
SR44
Linear Encoder Type
Electrostatic Capacitance
Caliper Grouping
Digital Caliper
Maximum Measurement - Inch
4 in
Case Type
Plastic Case
Maximum Measurement - mm
100 mm
Depth Rod Shape
Round
Measurements
4-Way
Dust Resistant
Yes
Measures Depth
Yes
Features
Rolling Thumb Wheel, Control Buttons on Face, Zero, On/Off and Inch/mm, Absolute Scales
Measures Inside Dimension
Yes
Graduations - Lower Scale
0 in
Measures Outside Dimension
Yes
Graduations - Upper Scale
4 in
Measures Step
Yes
Included Certification
Certificate of Inspection
Minimum Measurement - Fractional Inch
0 in
Includes Battery
Yes
Minimum Measurement - Inch
0 in
Includes Case
Yes
Minimum Measurement - mm
0 mm
Jaw Actuation Type
Thumb Wheel
With Locking Nut
Yes
Jaw Depth - Upper Jaw
21/32 in
Product Description
Digital calipers have adjustable jaws that slide along a beam to measure between two opposite sides of a tool or part. They are easier to read and offer higher precision than dial or vernier calipers. These calipers do not have SPC output capability, and are used when a direct reading is needed or for recording measurements by hand.
Item Barcode
Absolute Digital Caliper,0 To
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 1ARG3 | Absolute Digital |
 | UNSPSC CODES | 41111621 | |
 | VMRS (ATA) CODES | 053-006-009 | Absolute Digital |
