SQUARE D

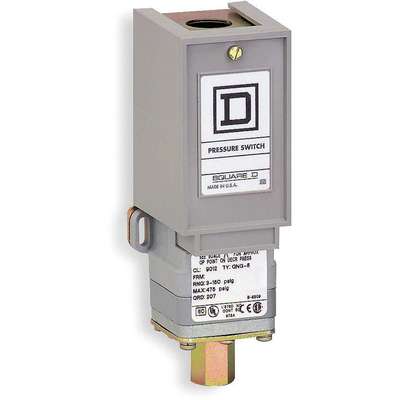

Square D Diaphragm Pressure Switch, Differential: 4.2 to 13.2 psi, Range: 3 to 150 psi, NEMA Rating 1
Hover over image to magnify
#919944-8 | Pkg Qty: 1
$311.25 pkg | $311.25 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Contact Rating
10 A @ 480 V
Item
Pressure Switch
Action
Standard
Mfr. Part Number
9012GNG5
Actuation Type
Diaphragm
NEMA Rating
1
Brand
SQUARE D
Number of Ports
1
Burst Pressure
475 psi
Package Quantity
1
Contact Form
SPDT
Phase
Single
Contact Type
SPDT
Port Type
1-Port 1/4-18 in. FNPT
DC Contact Rating
R300
Pressure Range
3 to 150
Differential
4.2 to 13.2 PSI
Range
3 to 150 PSI
Differential Pressure
4.2 to 13.2
Series
9012G
Enclosure
NEMA 1
Shipping Weight
1.98 lb.
Factory On/Off Setting
75 psi
Temperature Range
-10 deg. F to 185 deg. F
IP Rating
54
Type
Industrial
General
Application
Industrial
Special Features
Nitrile (Buna-N) Diaphragm, Control Circuit Rated, Single Stage Switch, General Purpose (Indoor) Enclosure
Includes
Switch Only
Standards
UL 508, CSA 3211-03, IEC 60957.5.1, CE
Media Temperature Range
-40░ to 250░F
Product Description
This pressure switch is designed to control and monitor pressure using air, oil, water, and other compatible fluids. It features an easily adjustable range and differential.
Expertly Selected Product Pairings
Documents
Item Barcode
Pressure Switch,Stndrd,3 To
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 1A352 | Pressure Switch, |
 | UNSPSC CODES | 39122210 | |
 | VMRS (ATA) CODES | 053-006-009 | Pressure Switch, |
